65 20 050 Removing and installing/replacing aerial rod

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Release aerial rod (1) in direction of arrow and remove from aerial base.

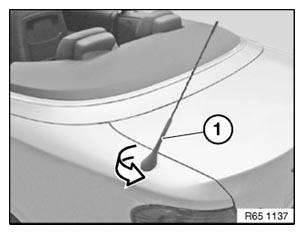

Fig 1: Removing Aerial Rod
G06178003Courtesy of BMW OF NORTH AMERICA, INC.
