51 46 026 Removing And Installing Or Replacing Front Air Outlet Trim Grille
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Open convertible top compartment lid, fold in convertible top if necessary
- Remove rear seat back . See SEATS - REPAIR (CONVERTIBLE) .
- Remove trim cover on rear left/right rollover protection system . See 54 62 010 REMOVING AND INSTALLING OR REPLACING TRIM COVER ON LEFT OR RIGHT ROLLBAR .
- Remove cover for seat belt at rear left/right.
- Remove trim on air outlet grille at front

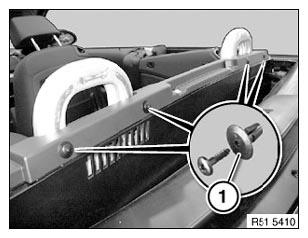

Release expansion rivets (1).
Installation:
If necessary, replace faulty expander rivets (1).

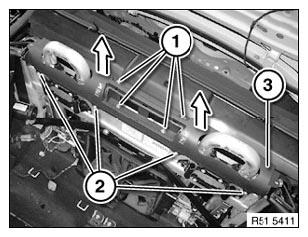

Release screws (1 and 2).
Tightening torque, see 51 46 PANEL, REAR PARCEL SHELF, ROLLER SUN BLIND .
Detach trim grille (3) by lifting upwards.
Installation:
Feed all screws/expander rivets onto trim grille (3).
Align trim grille (3) with rollover protection system and secure with screws/expander rivets.
