51 46 025 Removing And Installing/Replacing Trim On Air Outlet Grille

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

00 9 323 CLEANING WEDGE (SCRAPER)

Necessary preliminary tasks:

If necessary, fold in convertible top

Lift trim cover (1) out of retainers (2) with special tool 00 9 323 and feed out towards rear.

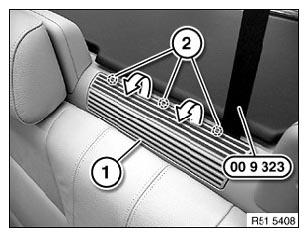

Fig 1: Lifting Trim Cover Out Of Retainers Using Special Tool 00 9 323

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) and guide (2) on trim must not be damaged.

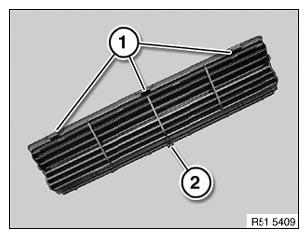

Fig 2: Identifying Catches & Guide On Trim

Courtesy of BMW OF NORTH AMERICA, INC.
