22 31 050 Replacing cross-member for transmission mounting (AWD manual transmission)

WARNING: This page is about a different car, the 2010 BMW 535xi, 2009 BMW 535xi, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR UNDERBODY PROTECTION
Remove EXHAUST SYSTEM (N54) .
Remove heat shields.
Support transmission with workshop jack

NOTE: Not M57T2

Release screws.

Remove exhaust system bracket (1).

Tightening torque 18 20 1AZ .

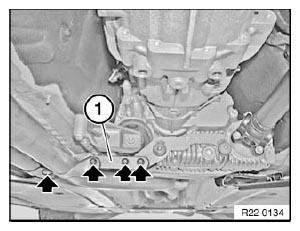

Fig 1: Identifying Exhaust System Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage cable for exhaust temperature sensor from holders on transmission cross-member (N53 only).

Release screws.

Remove transmission cross-member.

Tightening torque 27 00 10AZ .

Fig 2: Locating Transmission Cross-Member Screws

Courtesy of BMW OF NORTH AMERICA, INC.
