54 10 513 Clean slide/tilt sunroof and check water drain hoses for continuity

WARNING: This page is about a different car, the 2010 BMW 535xi, 2009 BMW 535xi, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Note current PuMA measures.

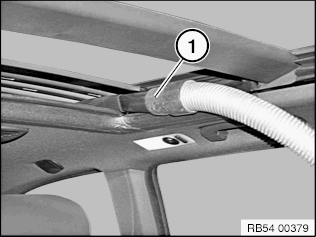

Clean slide/tilt sunroof guide rails in front area with crevice nozzle (1).

Fig 1: Cleaning Slide/Tilt Sunroof Guide Rails In Front Area With Crevice Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.

To prevent dirt contamination, partially cover/mask off roof lining.

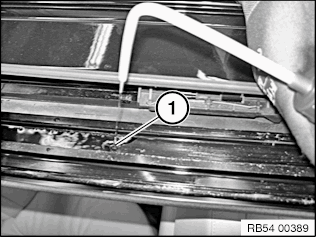

Clean slide/tilt sunroof guide rails in rear area with crevice nozzle (1).

Fig 2: Clean Slide/Tilt Sunroof Guide Rails In Rear Area With Crevice Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.

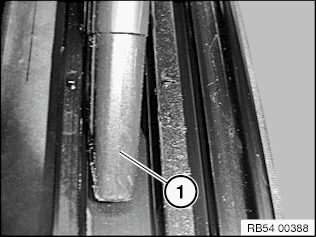

Top up left and right water drain channels (1) carefully with water using a standard spray bottle (at least 500 ml).

Fig 3: Filling Water Drain Channels With Water

Courtesy of BMW OF NORTH AMERICA, INC.

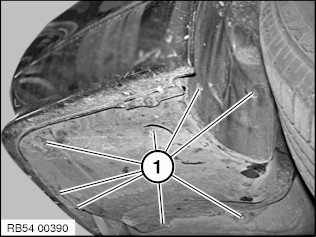

Remove cover of battery tray (1) at bottom rear right.

Fig 4: Identifying Battery Tray Cover

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The rear bumper panel is shown removed for purposes of clarity.

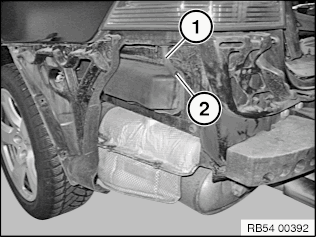

Check that water drains on both side at the valve (2) of the water drain hose (1).

IMPORTANT: If no water emerges after a certain period of time (approx. 5 minutes), perform the following steps until water emerges (performed for a separate charge):

Pull off valve (2) of water drain hose (1) on left and right. Valve (2) must not be refitted. Clean both rear water drain hoses.
Observe repair instructions "CLEANING BOTH REAR WATER DRAIN HOSES FOR PANORAMA GLASS ROOF ".

Fig 5: Identifying Water Drain Hose And Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Check roofliner in area of D-pillar trim panel, spare wheel well and luggage compartment side boxes for emergence of water.
