54 10 515 Cleaning both rear water drain hoses for panorama glass roof

WARNING: This page is about a different car, the 2010 BMW 535xi, 2009 BMW 535xi, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.

These repair instructions do not apply for vehicles with an installed strainer.

Flexible crevice nozzle (1), minimum length: 60 cm
Possible procurement source: Electronics market
Heat-shrink tubing with inside adhesive (2) Ø 18.0 / 6.0 mm
Possible procurement source: Automotive parts store
Insulating sleeve (3), inner diameter: 12 mm
Possible procurement source: Automotive parts store
Flexurally rigid Bowden cable sleeve (4), for example: Gear selector cable (at least 3 m long) with two end caps
Possible procurement source: Bicycle shop / spare parts store
Workshop vacuum cleaner
Hand-held hot-air device, order number: 81 49 0 444 131

Fig 1: Identifying Flexible Crevice Nozzle, Heat-Shrink Tubing, Insulating Sleeve, And Bowden Cable Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

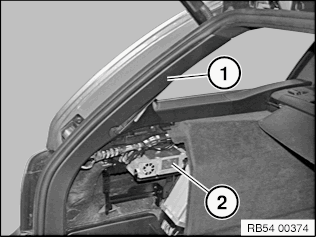

Remove D-pillar trim panel (1).

IMPORTANT: Protect electronic components (2) against moisture.

Fig 2: Identifying D-Pillar Trim Panel And Electronic Components

Courtesy of BMW OF NORTH AMERICA, INC.

To avoid dirt contamination, partially cover/tape off headlining (1) and passenger compartment.

Fig 3: Taping Off Headlining

Courtesy of BMW OF NORTH AMERICA, INC.

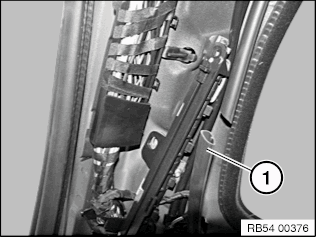

Cut open drain hose (1).

Fig 4: Cutting Open Drain Hose

Courtesy of BMW OF NORTH AMERICA, INC.

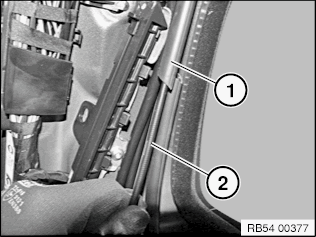

To clean, pierce drain hose (1) with Bowden cable sleeve (2).

Fig 5: Identifying Drain Hose And Bowden Cable Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT:

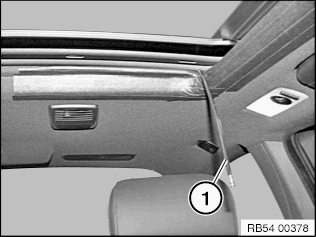

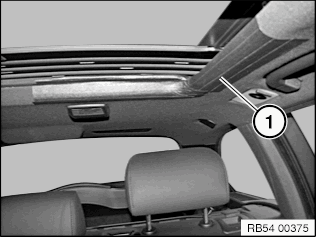

Bowden cable (1) is pushed clearly over the headlining for display purposes only.

Not permissible for repairs.

Risk of passenger compartment dirt contamination.

Fig 6: Identifying Bowden Cable At Headlining

Courtesy of BMW OF NORTH AMERICA, INC.

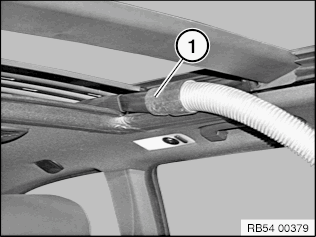

Draw off dirt contamination with crevice nozzle (1).

IMPORTANT: Only use a clean workshop vacuum cleaner to avoid dirt contamination in the passenger compartment.

Fig 7: Removing Dirt Contamination With Crevice Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.

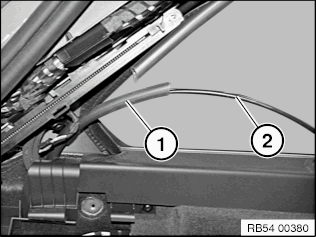

Clean lower drain hose (1) with Bowden cable (2).

Fig 8: Cleaning Lower Drain Hose With Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Cut insulating sleeve (2) to approx. 8 cm in length.

Slide cut insulating sleeve onto the lower section of the severed water drain hose (1).

NOTE: If necessary, fix insulating sleeve with super glue to center of lower section of severed water drain hose (1).

Fig 9: Cutting Insulating Sleeve To Approx. 8cm In Length And Sliding Cut Insulating Sleeve Onto Lower Section Of Severed Water Drain Hose

Courtesy of BMW OF NORTH AMERICA, INC.

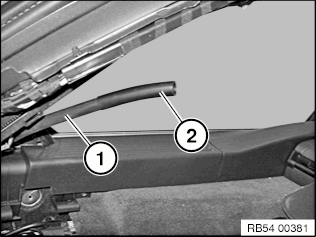

Cut heat-shrink tubing (1) to approx. 11 cm in length.

Slide cut heat-shrink tubing (1) onto the upper section of the severed water drain hose (2).

Fig 10: Cutting Heat-Shrink Tubing To Approx. 11cm In Length And Sliding Cut Heat-Shrink Tubing Onto Upper Section Of Severed Water Drain Hose

Courtesy of BMW OF NORTH AMERICA, INC.

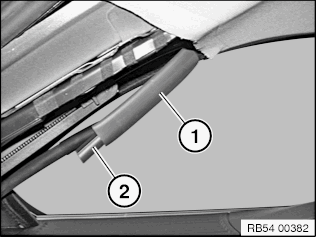

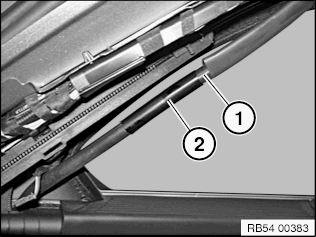

Connect upper water drain hose (1) with insulating sleeve (2) as far as it will go.

Fig 11: Connecting Upper Water Drain Hose With Insulating Sleeve As Far As It Will Go

Courtesy of BMW OF NORTH AMERICA, INC.

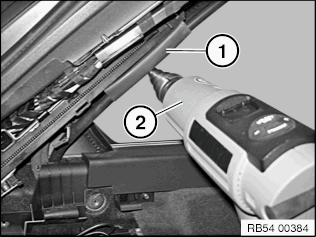

Slide heat-shrink tubing (1) centrally over repair area and shrink-fit with hand-held hot-air device (2).

Fig 12: Sliding Heat-Shrink Tubing Centrally Over Repair Area And Shrink-Fitting With Hand-Held Hot-Air Device

Courtesy of BMW OF NORTH AMERICA, INC.

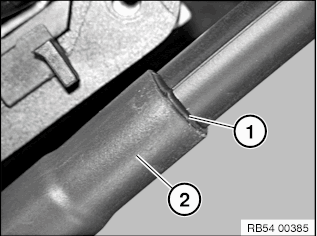

Inside adhesive (1) of heat-shrink tubing (2) must emerge at the ends.

Fig 13: Identifying Inside Adhesive Of Heat-Shrink Tubing

Courtesy of BMW OF NORTH AMERICA, INC.
