Manual Transmission: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, 2004 MINI Cooper, and 2003 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
  1. Read out fault memory of EMS control unit. Check stored fault messages. Rectify faults. Clear fault memory. Switch off ignition. Disconnect battery.
  2. Remove cover of EMS control unit. Release clips (1) and lift EMS control unit upwards. See Fig 1. Unlock plug connections outwards (2) and detach in direction of arrow.

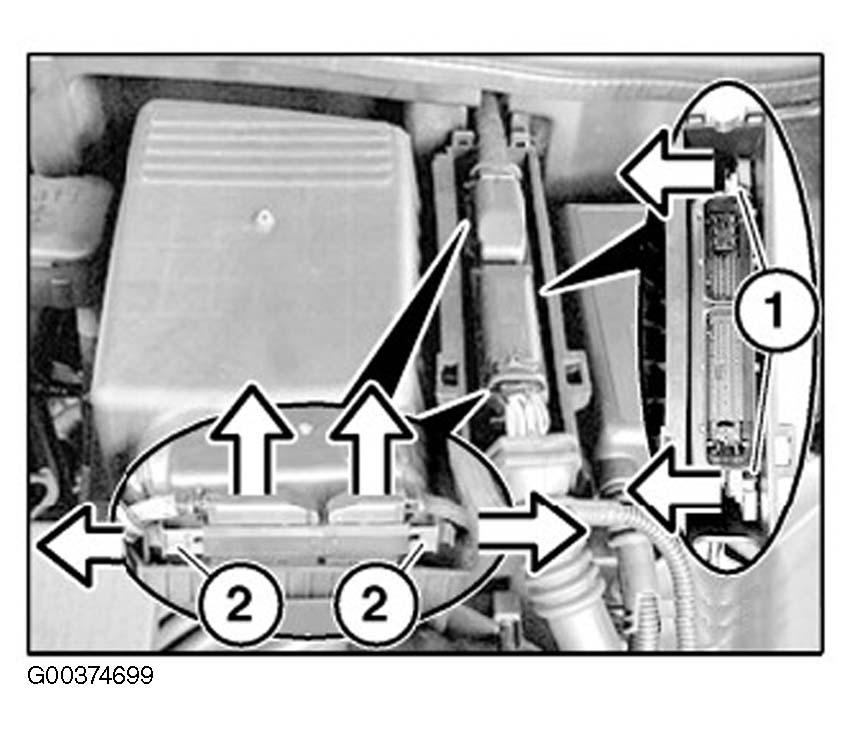

    3. Fig 1: Unlocking Plug On DME Control Unit
    G00374699Courtesy of BMW OF NORTH AMERICA, INC.
  3. Release screws on intake filter housing. Release clamp (2) and remove hose from intake filter housing. See Fig 2. Remove inlet pipe (1) from intake filter housing. See Fig 3. Remove intake filter housing.

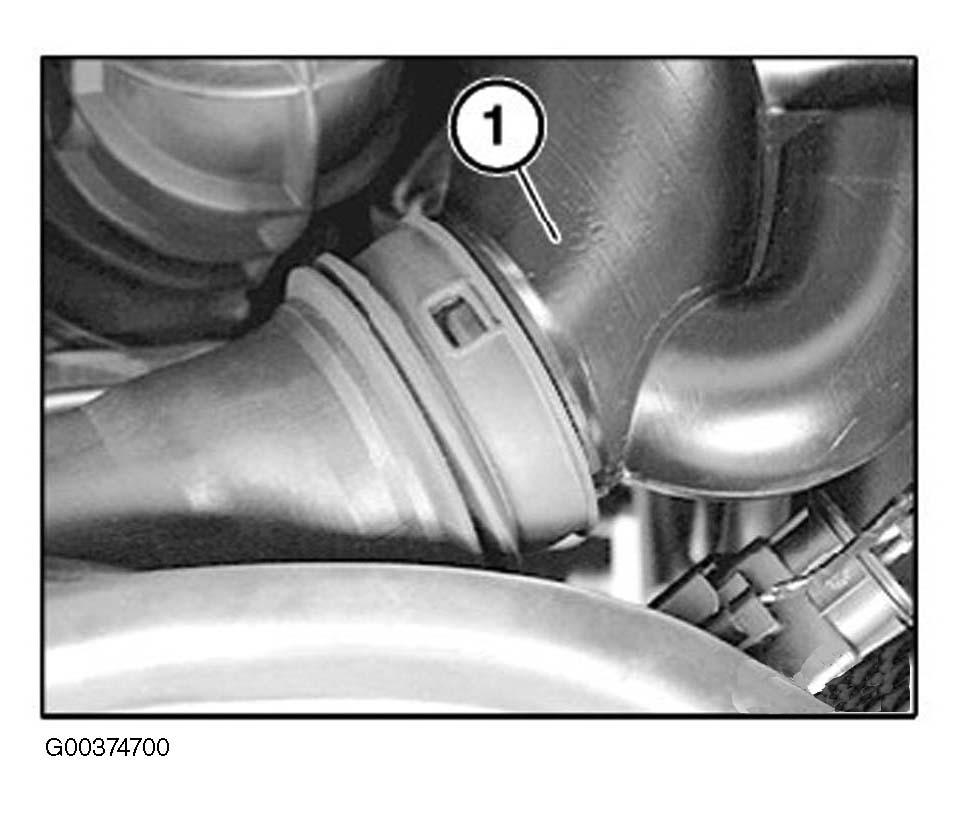

    4. Fig 2: Removing Hose From Intake Filter Housing
    G00374700Courtesy of BMW OF NORTH AMERICA, INC.

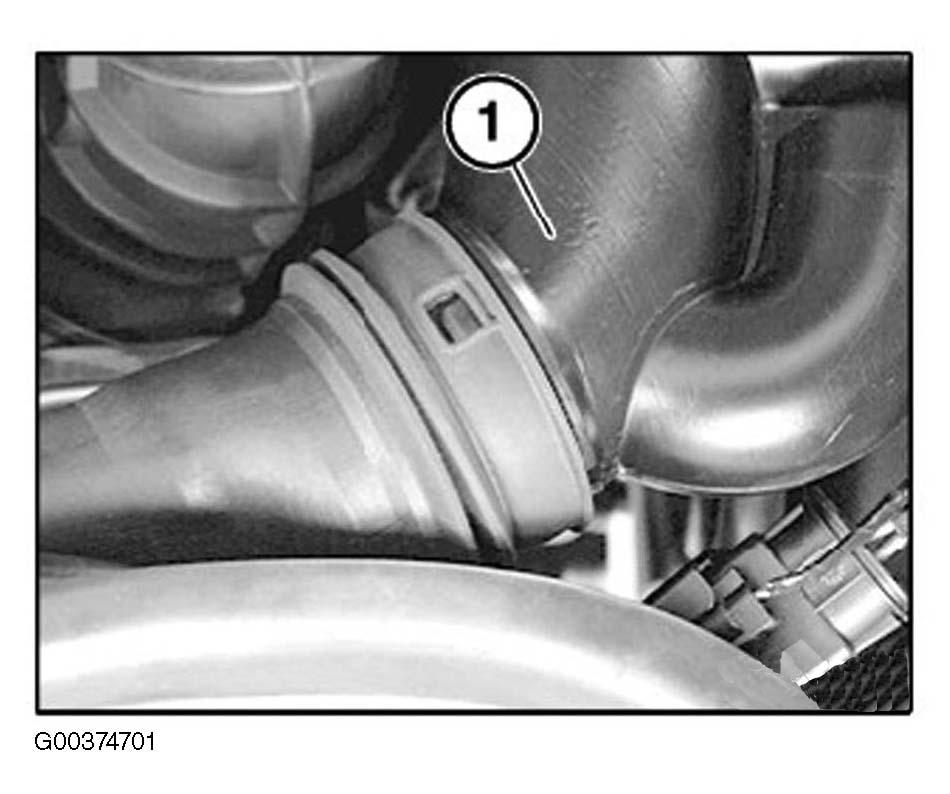

    Fig 3: Removing Intake Filter Housing
    G00374701Courtesy of BMW OF NORTH AMERICA, INC.
  4. Drain gear oil. See MANUAL TRANSMISSION Servicing article.
  5. Remove screws (1) and threaded blind rivets (2) from left wheel arch liner. See Fig 4. Remove liner from wheel arch.

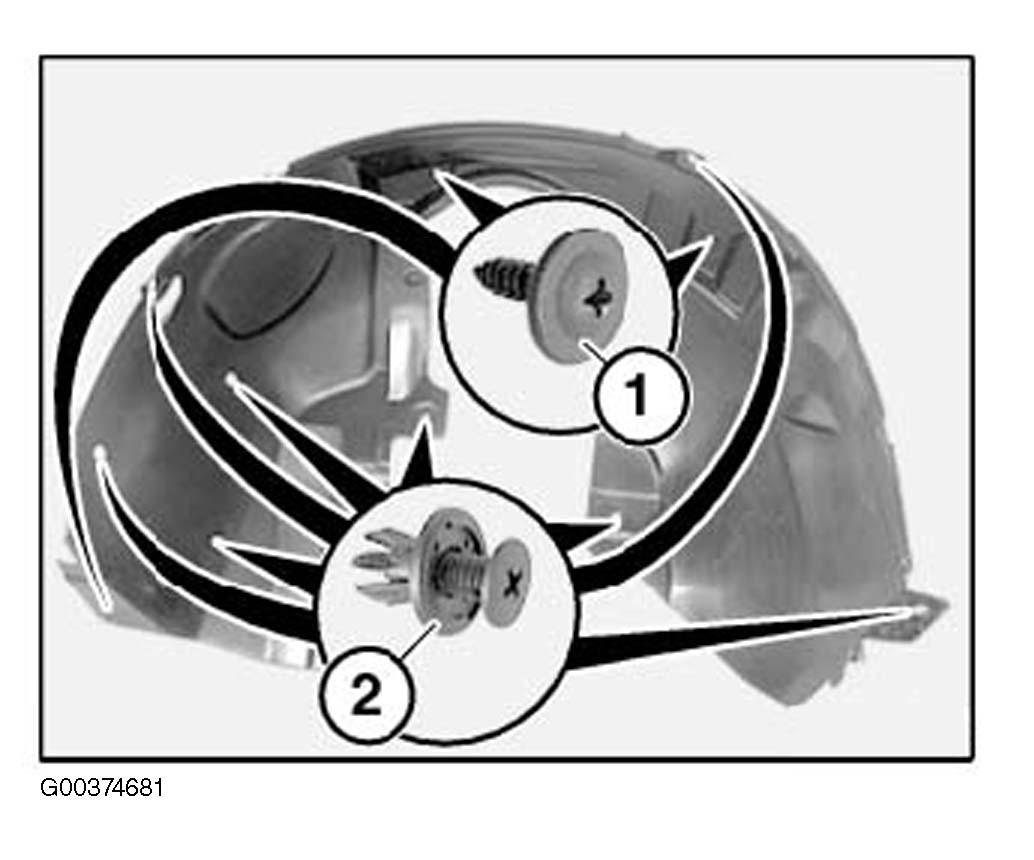

    6. Fig 4: Removing Wheel Arch Trim
    G00374681Courtesy of BMW OF NORTH AMERICA, INC.
  6. Remove both driven shafts with steering stub carrier. See REMOVING AND INSTALLING/REPLACING LEFT DRIVE SHAFT and REMOVING AND INSTALLING/REPLACING RIGHT DRIVE SHAFT .
  7. Remove throttle assembly. See THROTTLE ASSEMBLY .
  8. Disconnect oxygen sensor connector (1). See Fig 5. Disconnect MAP sensor connector (1). See Fig 6. Remove MAP sensor retaining screws (2) and remove sensor (3). Replace O-ring (4).

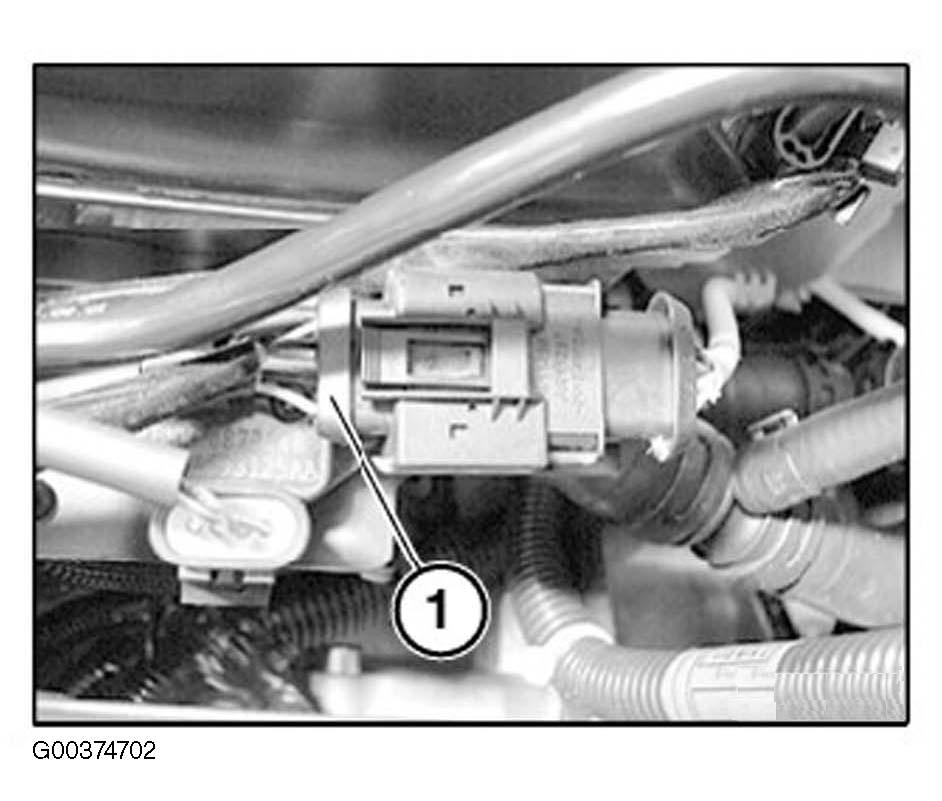

    9. Fig 5: Disconnecting Oxygen Sensor Connector
    G00374702Courtesy of BMW OF NORTH AMERICA, INC.

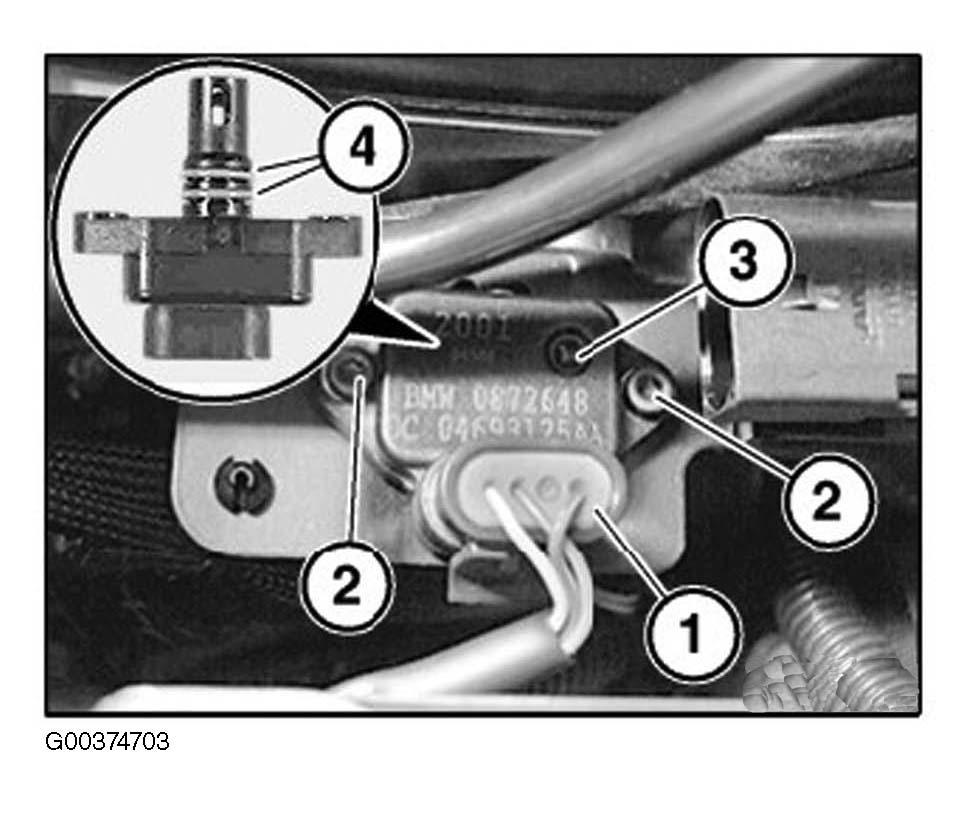

    Fig 6: Removing Suction Pressure Sensor
    G00374703Courtesy of BMW OF NORTH AMERICA, INC.
  9. Remove impact tubes. See BUMPER BRACKET .
  10. Remove front axle carrier (without wheel alignment). See FRONT SUSPENSION article.
  11. Secure engine in installation position with special tool. See SECURING ENGINE IN INSTALLATION POSITION .
  12. Unclip lines (3) and (4) from holder. Release screws (1) and remove top engine support bracket. See Fig 7.

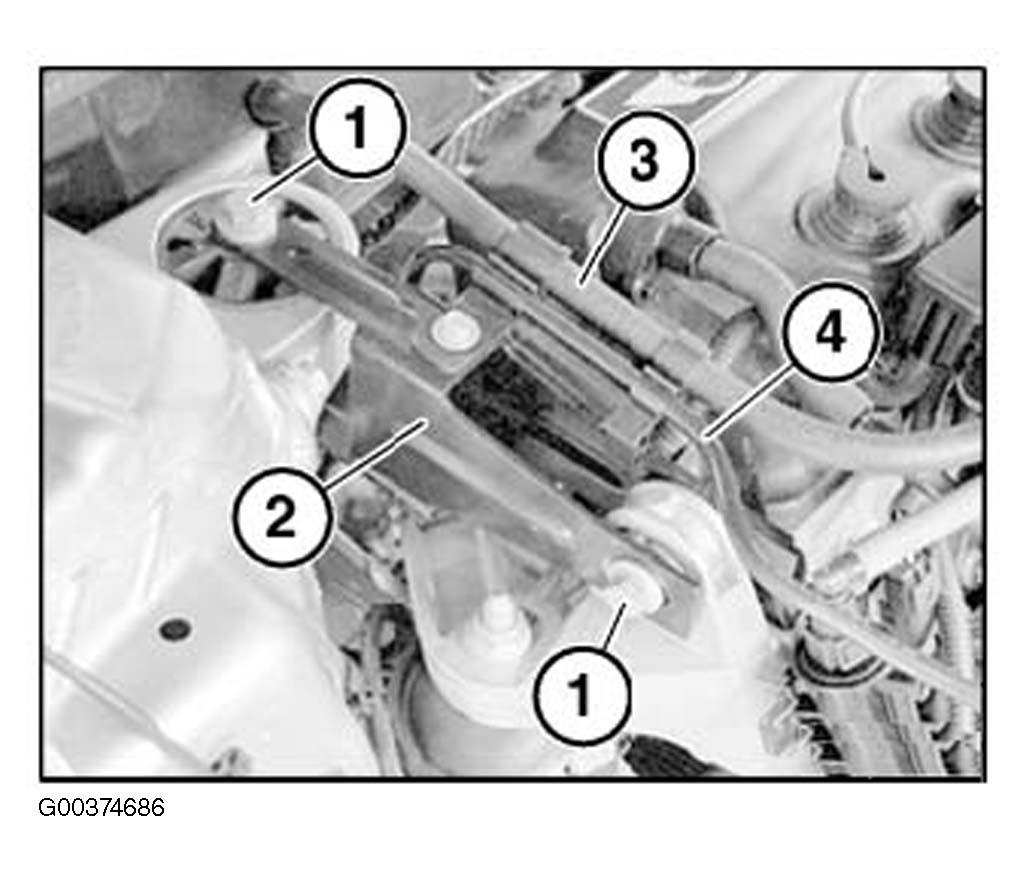

    13. Fig 7: Removing Upper Engine Carrier Bracket
    G00374686Courtesy of BMW OF NORTH AMERICA, INC.
  13. Release bolts (1) and remove bottom engine carrier bracket. See Fig 8.

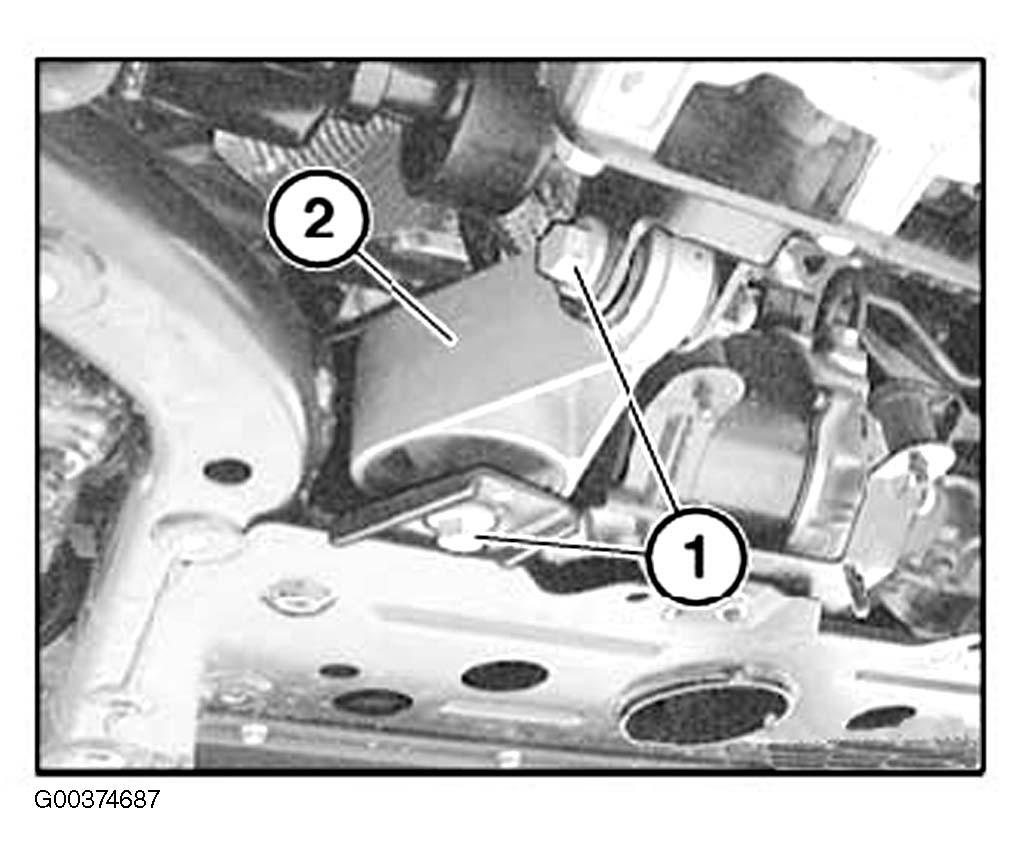

    14. Fig 8: Removing Lower Engine Carrier Bracket
    G00374687Courtesy of BMW OF NORTH AMERICA, INC.
  14. Release screws (1). Remove manifold heat shield. See Fig 9.

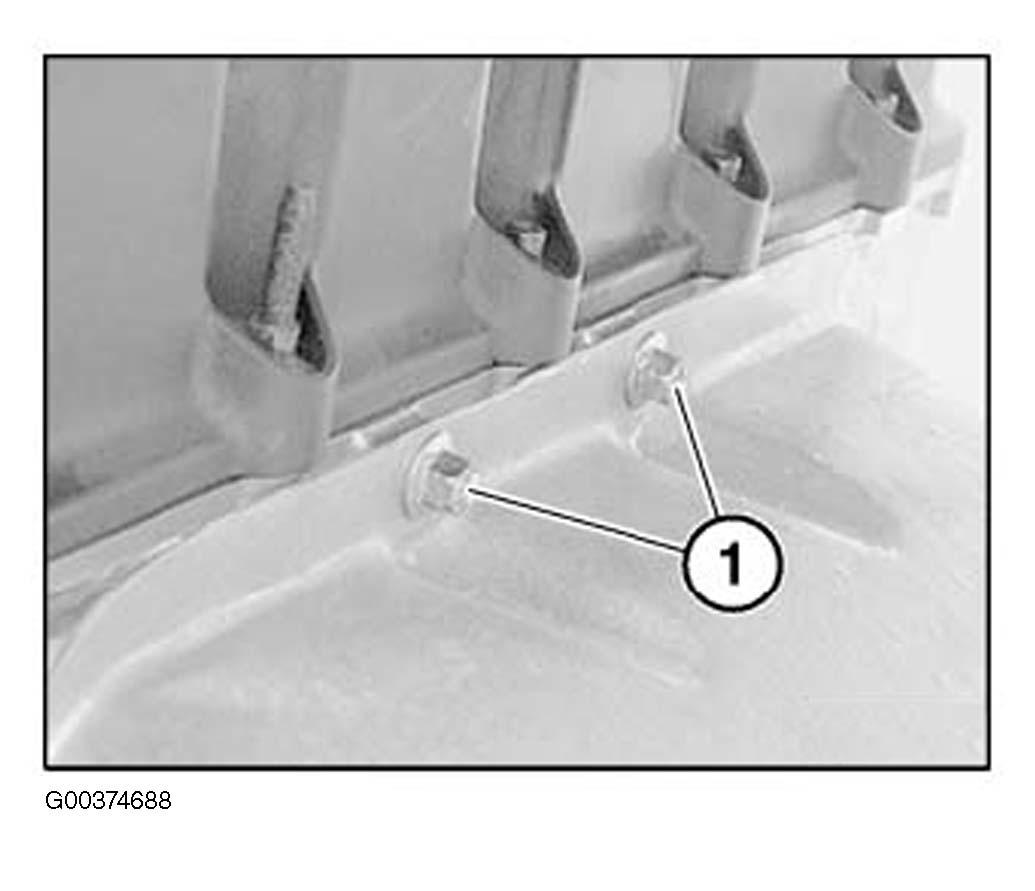

    15. Fig 9: Removing Manifold Heat Shield
    G00374688Courtesy of BMW OF NORTH AMERICA, INC.
  15. Lower front wall and fit Special Tools (11 8 401) and (11 8 402). See Fig 10.

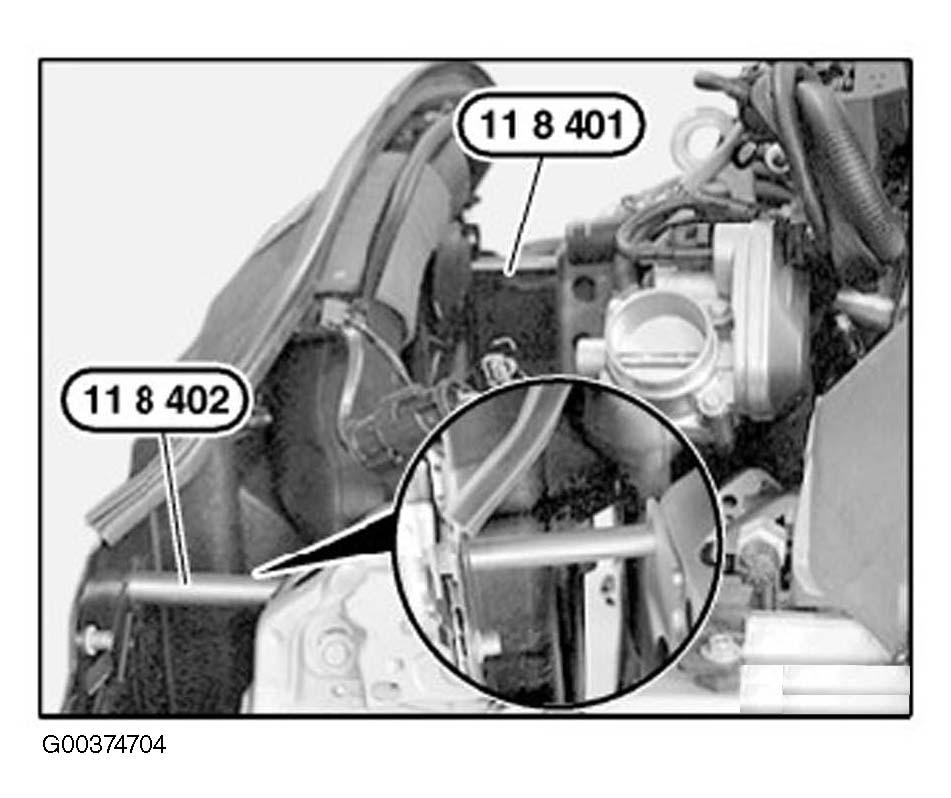

    16. Fig 10: Fitting Special Tools
    G00374704Courtesy of BMW OF NORTH AMERICA, INC.
  16. Remove shift cables (1) with Special Tool (23 4 010) from ball joints. See Fig 11. Withdraw shift cables from mounting (2) and remove.

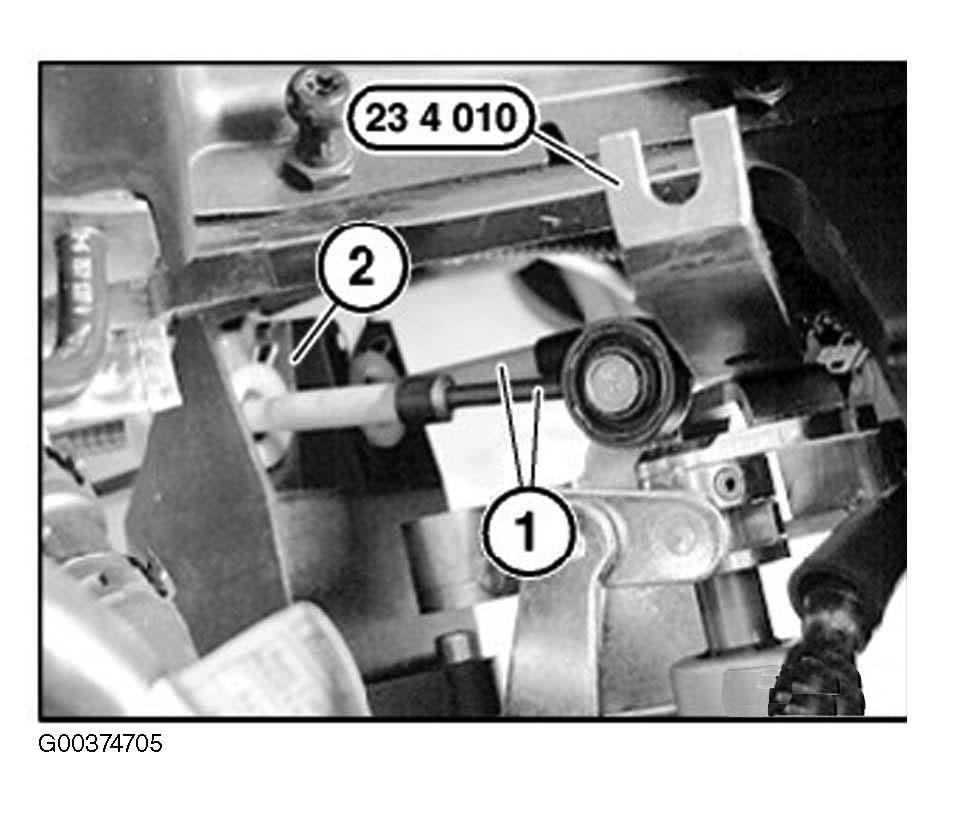

    17. Fig 11: Removing Shift Cables
    G00374705Courtesy of BMW OF NORTH AMERICA, INC.
  17. Release screws (1). See Fig 12. Remove clutch slave cylinder (2) from transmission.

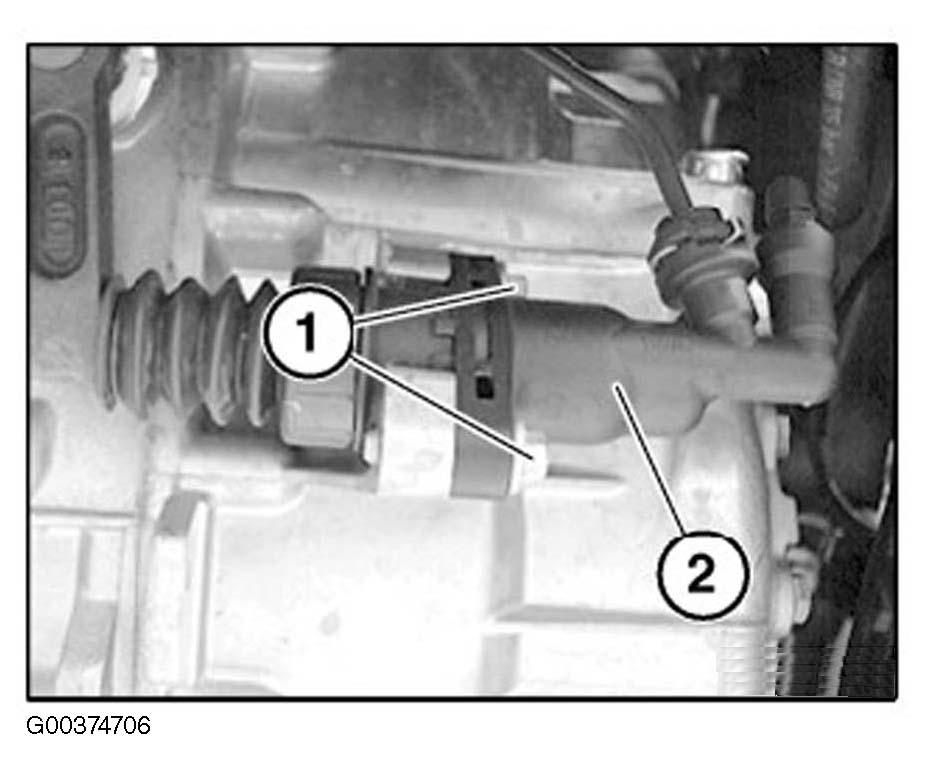

    18. Fig 12: Removing Clutch Slave Cylinder
    G00374706Courtesy of BMW OF NORTH AMERICA, INC.
  18. Detach plug connector (1) of reversing light switch. See Fig 13.

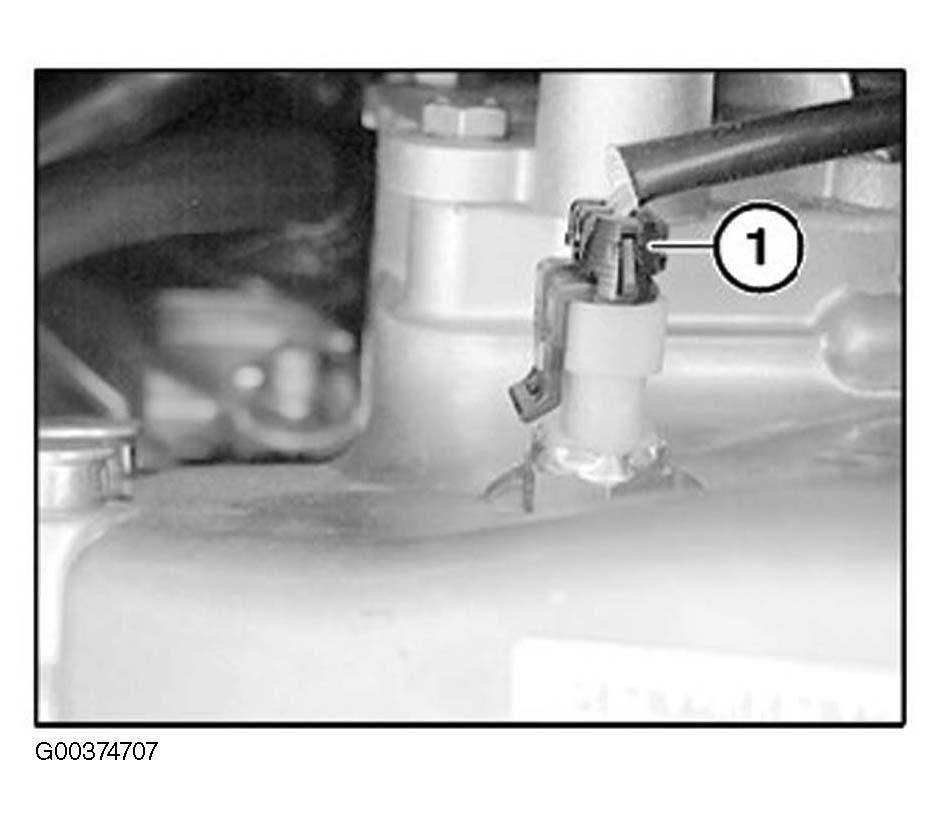

    19. Fig 13: Detaching Plug Connector Of Reversing Light Switch
    G00374707Courtesy of BMW OF NORTH AMERICA, INC.
    NOTE: Remove pipes at quick-release couplings.
  19. Release screw (1) on turbocharger inlet and open clamp (2). See Fig 14. Disconnect turbocharger intake pipe (3) from connecting pipes (4). Release pipe of clutch slave cylinder from clips on transmission and push to one side.

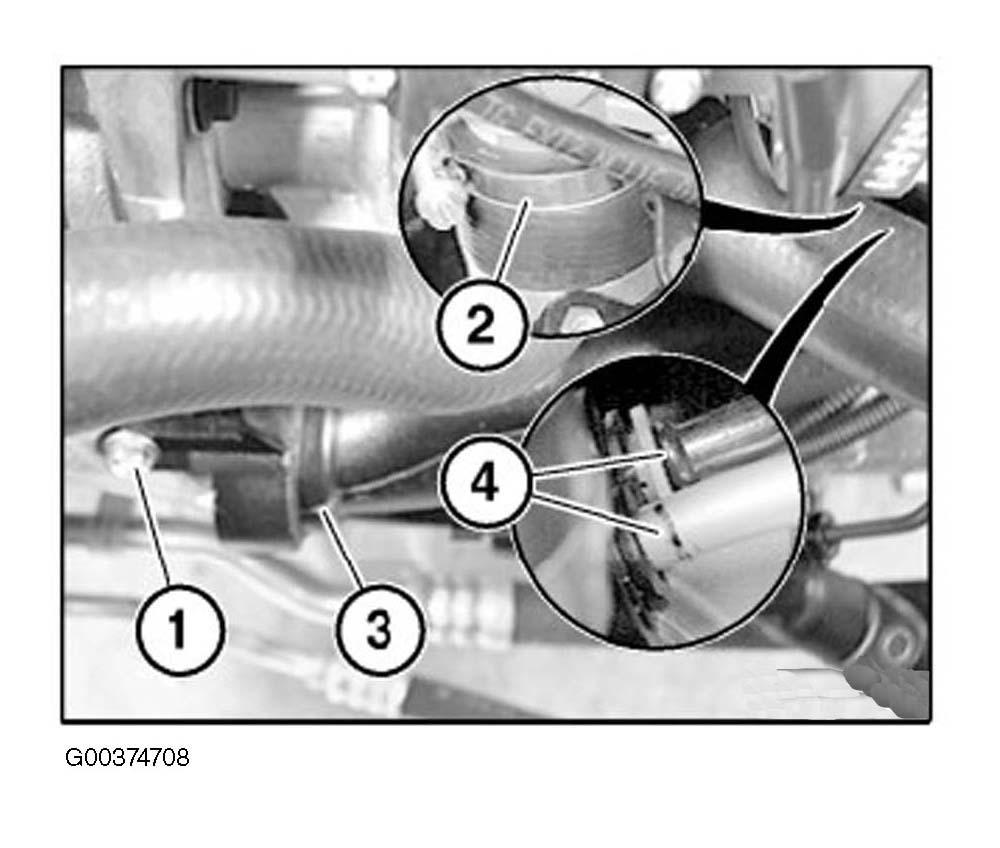

    20. Fig 14: Disconnecting Turbocharger Intake Pipe
    G00374708Courtesy of BMW OF NORTH AMERICA, INC.
  20. Withdraw pressure line of suction pressure sensor from mounting. Release screws (1) and remove mounting (2). See Fig 15.

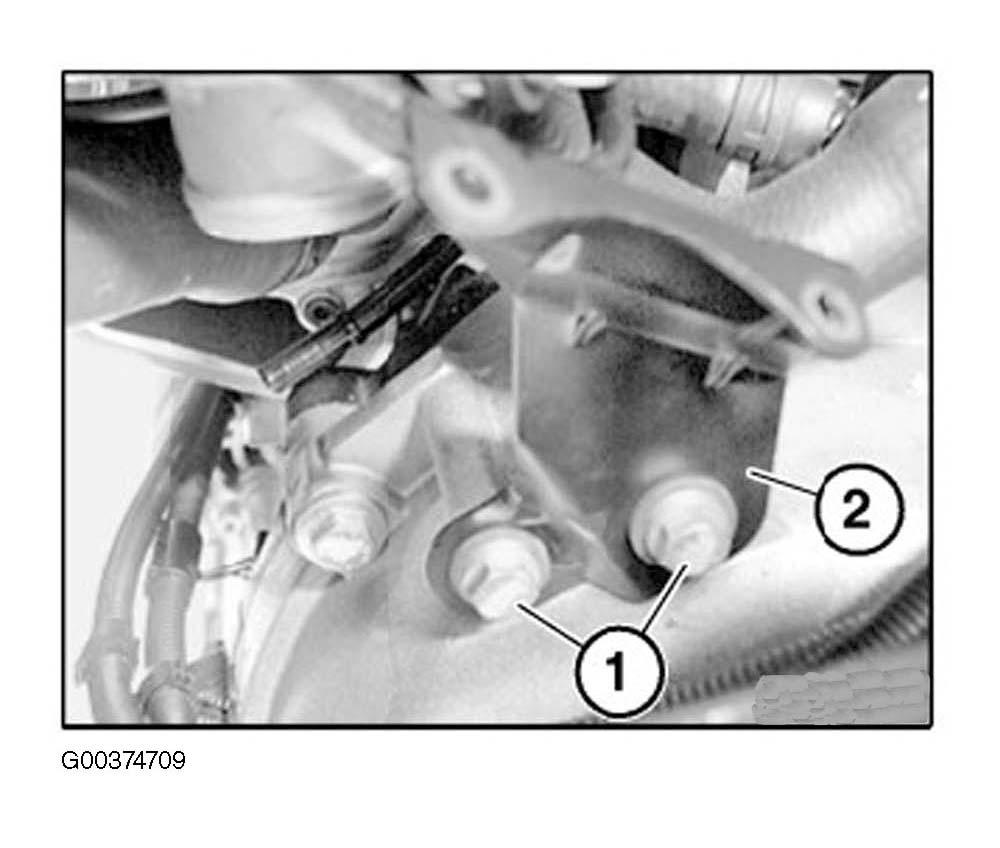

    21. Fig 15: Removing Pressure Sensor Mounting
    G00374709Courtesy of BMW OF NORTH AMERICA, INC.
  21. Release screws (1) and remove endplate (2). See Fig 16.

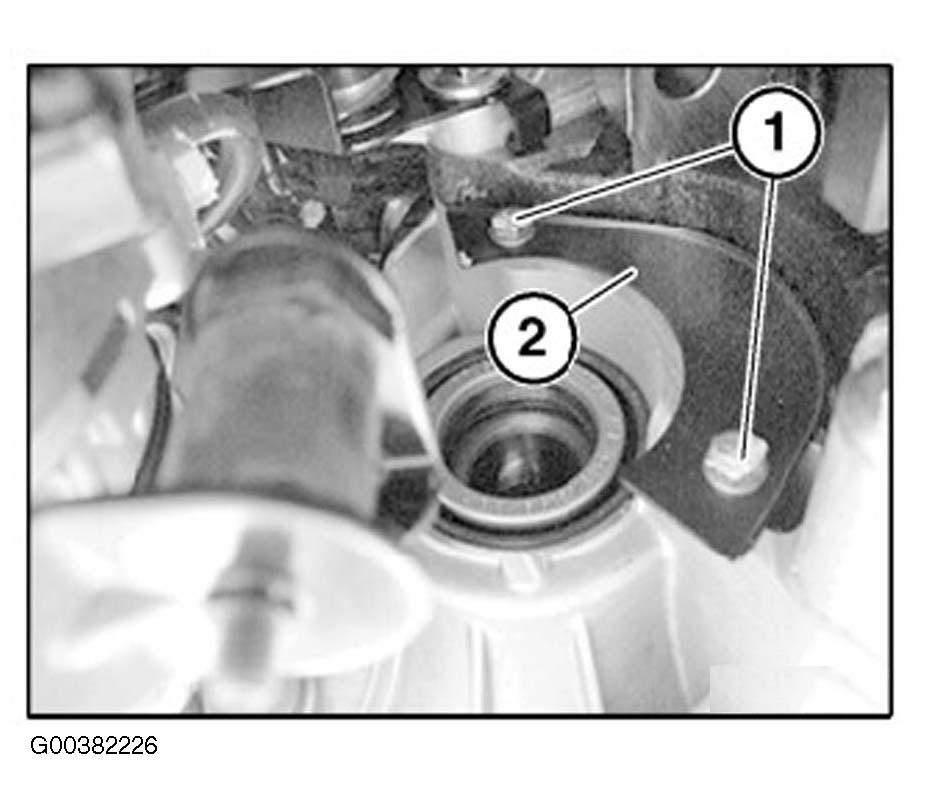

    22. Fig 16: Removing Endplate
    G00382226Courtesy of BMW OF NORTH AMERICA, INC.
  22. Release screw (1). See Fig 17. Remove wiring harness for oxygen sensors from clip (2) and remove starter motor heat shield.

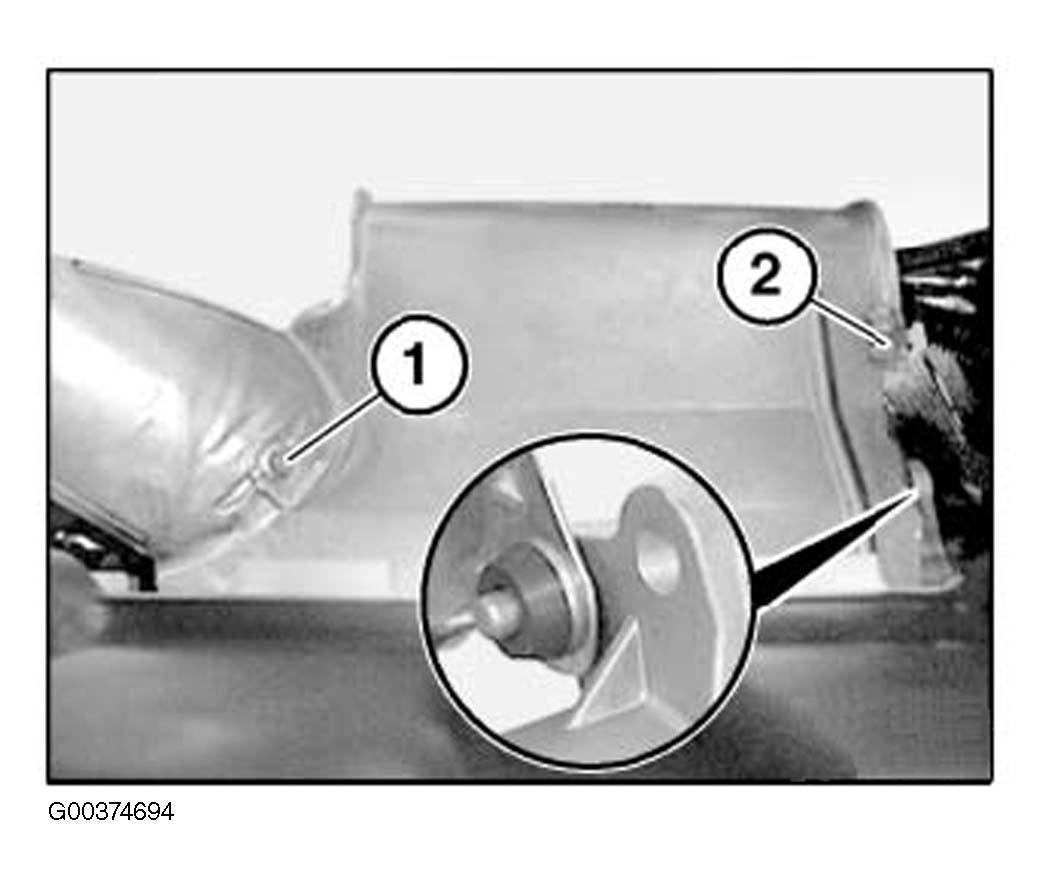

    23. Fig 17: Removing Starter Motor Heat Shield
    G00374694Courtesy of BMW OF NORTH AMERICA, INC.
  23. Release starter motor connections (1 and 2). See Fig 18. Remove wiring harness from transmission area. Note routing of wiring harness to starter motor.

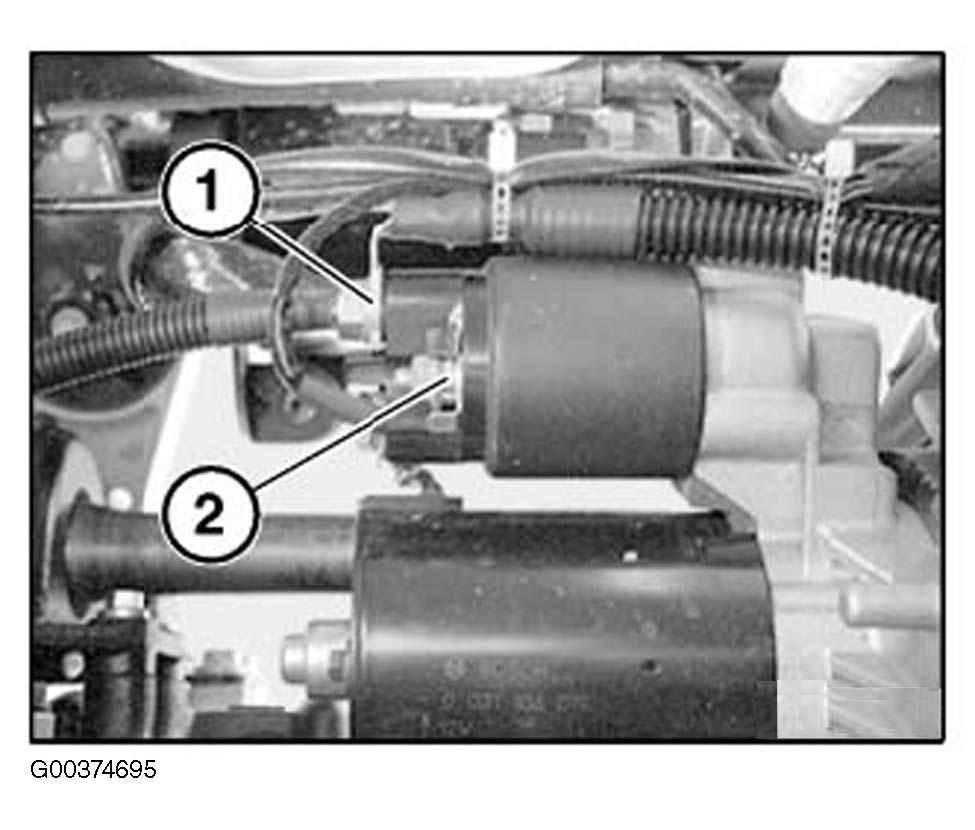

    24. Fig 18: Releasing Starter Motor Connections
    G00374695Courtesy of BMW OF NORTH AMERICA, INC.
  24. Release screw (1). See Fig 19. Release screws (2). Remove transmission mounting.

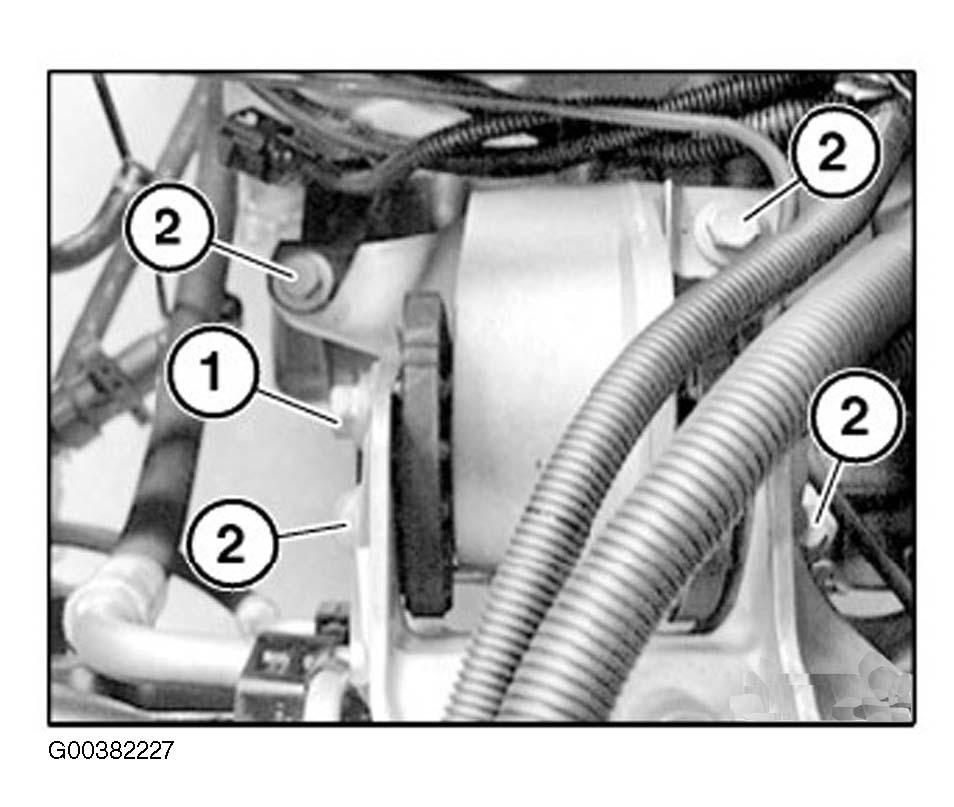

    25. Fig 19: Removing Transmission Mounting
    G00382227Courtesy of BMW OF NORTH AMERICA, INC.
    NOTE: A second person is required to help in removing and installing the transmission.
  25. Lower engine approx. 135 mm. Release transmission bolts. Remove transmission.
