Securing Engine In Installation Position

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, 2004 MINI Cooper, and 2003 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

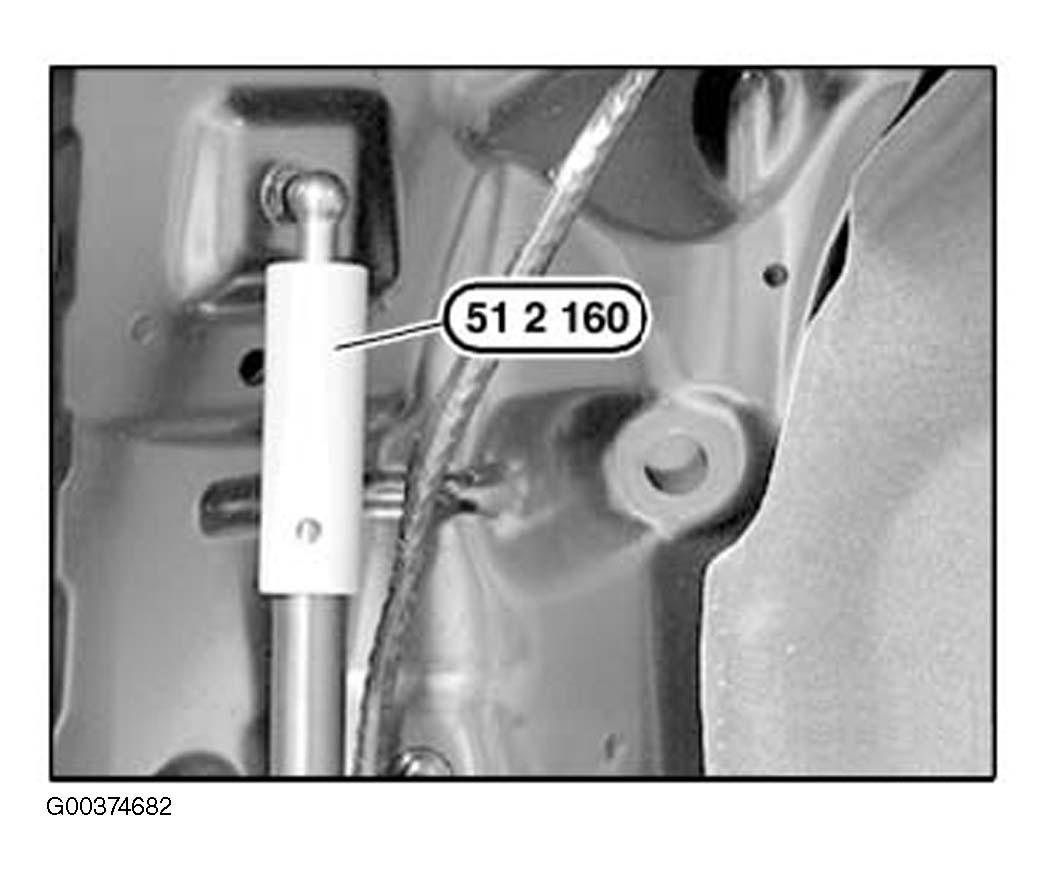

  1. Install Special Tool (51 2 160). See Fig 1.
    2. Fig 1: Installing Special Tool
    G00374682Courtesy of BMW OF NORTH AMERICA, INC.

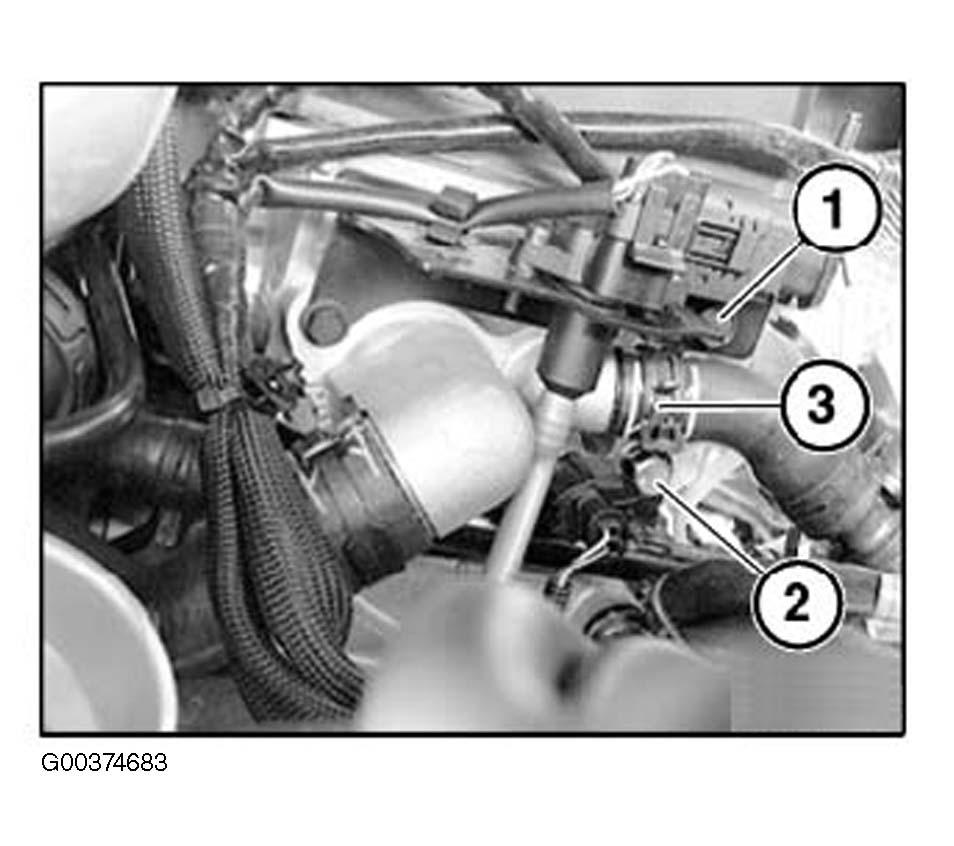

  2. Reduce excess pressure in cooling system. Release screw (1). See Fig 2. Lay bracket for oxygen sensor to one side. Release screw (2). Release coolant line clamp (3).
    3. Fig 2: Preparing Engine For Suspension
    G00374683Courtesy of BMW OF NORTH AMERICA, INC.

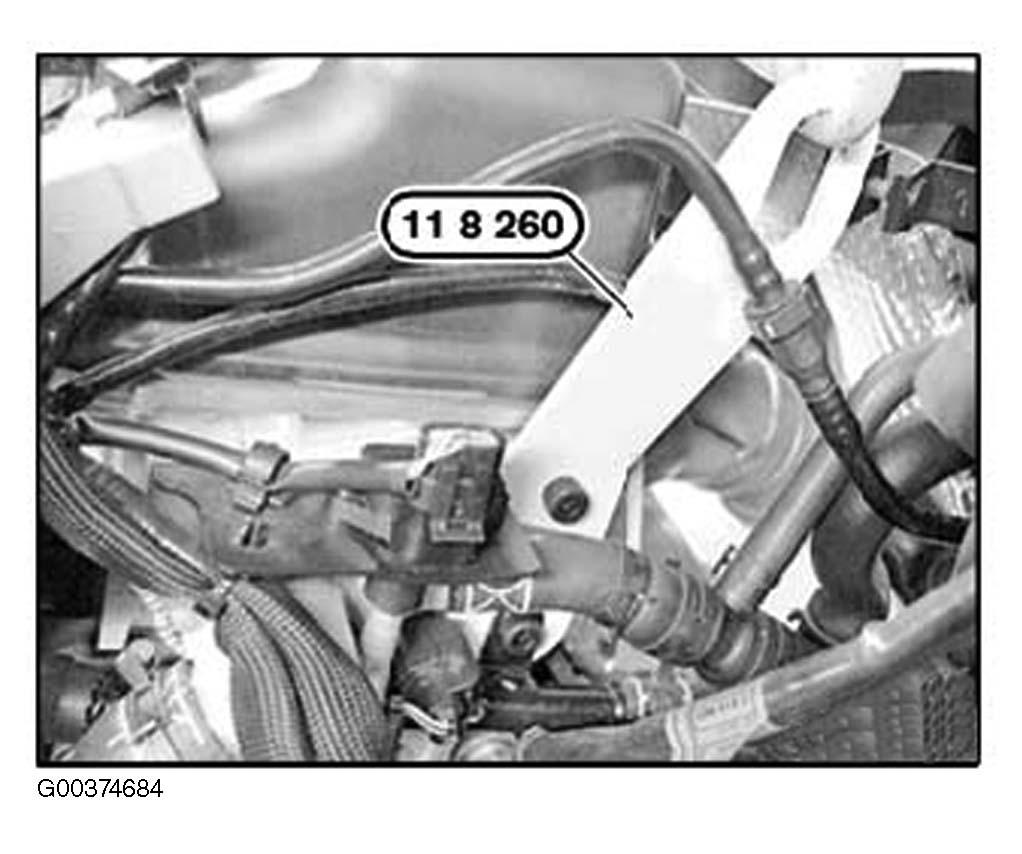

  3. Screw Special Tool (11 8 260) onto cylinder head. See Fig 3. The water pipe is also secured to Special Tool (11 8 260) at the same time.
    4. Fig 3: Screwing Special Tool Onto Cylinder Head
    G00374684Courtesy of BMW OF NORTH AMERICA, INC.
    CAUTION: Remove plug before fitting special tool. Risk of damage on both side walls.

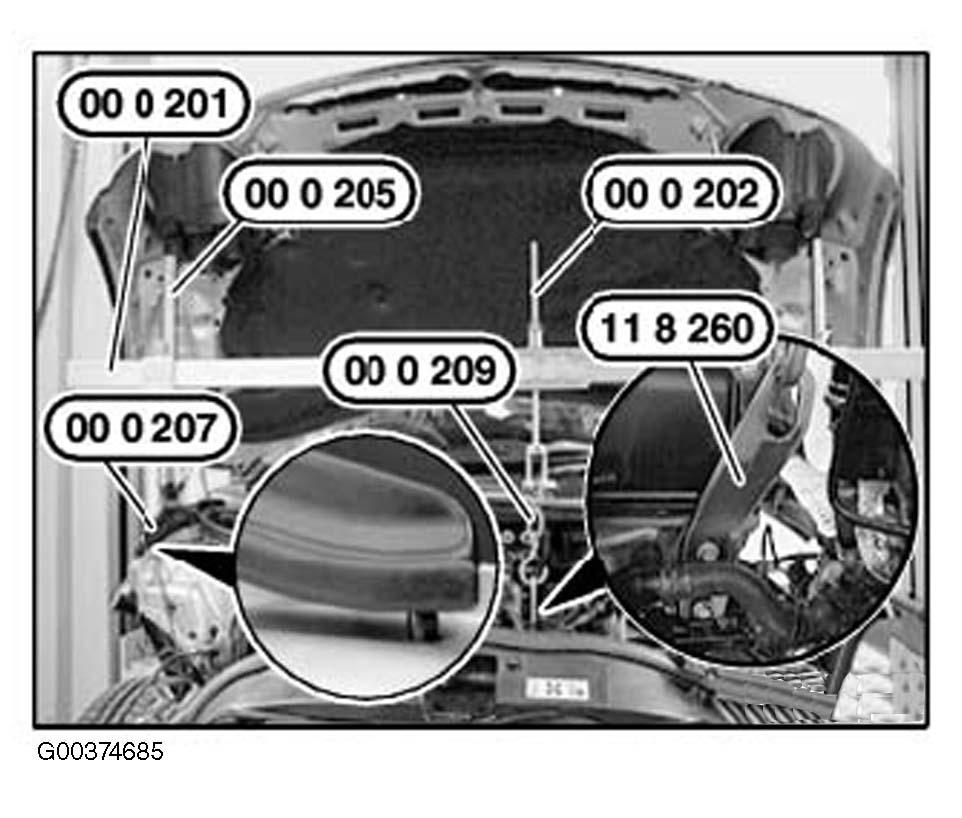

  4. Assemble Special Tool (00 0 200) with Special Tools (00 0 201 / 00 0 202 / 00 0 205 / 00 0 207 / 00 0 209) and fit. See Fig 4.
    5. Fig 4: Assembling Special Tool
    G00374685Courtesy of BMW OF NORTH AMERICA, INC.
  5. Assemble to engine.
