51 43 148 Removing and installing or replacing trim on left or right door pillar (top)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove panel for door pillar (bottom)
Release seat belt screw on front seat . See 72 11 033 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT SEAT BELT (REEL) .

Release clips (1).

Pull off panel (2) towards bottom.

Separate webbing.

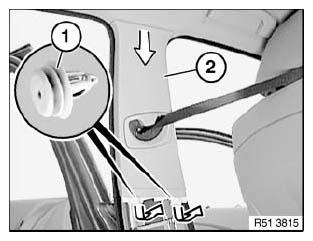

Fig 1: Removing Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of trim (1) must not be damaged or missing:

2 Guides
3 Clips

Fixtures for expansion rivets
Belt finisher strip

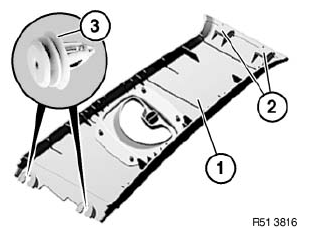

Fig 2: Identifying Guides And Clips
Courtesy of BMW OF NORTH AMERICA, INC.
