54 34 130 Removing and installing or replacing headlining in convertible top

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove cowl panel trim (convertible top fastener)
Support convertible top compartment lid in service position . See 51 00 ... Service position of convertible top compartment lid .

Unfasten screws.

Fig 1: Locating Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release Torx screw (1) from front strap on left and right.

Installation:

Replace Torx screws and insert with Loctite.

Fig 2: Locating Torx Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Convertible top rod (bow), front:

Unfasten screws.

Fig 3: Locating Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Convertible top rod (bow), middle:

Unfasten screws.

Fig 4: Locating Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Convertible top rod (bow), rear:

Unfasten screws.

Fig 5: Locating Screws

Courtesy of BMW OF NORTH AMERICA, INC.

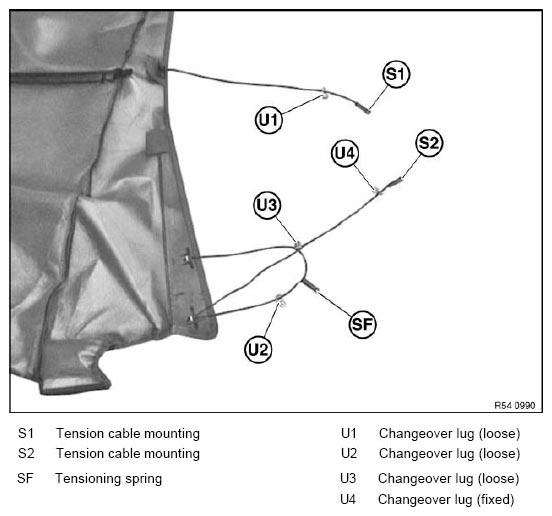

Overview of front straps:

Fig 6: Identifying Front Straps Components

Courtesy of BMW OF NORTH AMERICA, INC.

Course of front straps:

S1 through U1

S2 through U3, U4

SF through U3, U2

Release Torx screw from tension cable mounting (S2) on convertible top frame.

Release Torx screw from changeover lug (U1).

Installation:

Replace Torx screws and insert with Loctite.

Observe course of front straps.

Fig 7: Identifying Torx Screws And Changeover Lug

Courtesy of BMW OF NORTH AMERICA, INC.

Release Torx screws of changeover lugs (U2, U3, U4) for tension cable.

Release Torx screw from tension cable mounting (S1) on convertible top frame.

Installation:

Replace Torx screws and insert with Loctite.

Observe course of front straps.

Fig 8: Identifying Torx Screws Of Changeover Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Release Torx screw from tensioning spring (SF).

Feed out tension cables.

Installation:

Replace Torx screws and insert with Loctite.

Observe course of front straps.

Fig 9: Identifying Torx Screw From Tensioning Spring (SF)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Front strap (1) must be fitted in twisted condition.

Tension cable (2) must be above front strap (1), see Fig 10.

Fig 10: Identifying Front Strap And Tension Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Pull welt of roofliner (1) out of convertible top frame.

Release Torx screw (2).

Installation:

Replace Torx screws and insert with Loctite.

Fig 11: Identifying Torx Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Pull welt of roofliner (1) out of convertible top frame.

Installation:

Make sure retainers are correctly seated on welt.

Remove roofliner from car.

Fig 12: Pulling Welt Of Roofliner

Courtesy of BMW OF NORTH AMERICA, INC.
