65 20 035 Removing and installing/renewing roof aerial

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, 2007 BMW X3, and 2006 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Detach empty housing for roof-mounted aerial.

Release screw (1) and feed out roof aerial (2) towards top.

Fig 1: Release Screw (1) And Feed Out Roof Aerial (2) Towards Top

Courtesy of BMW OF NORTH AMERICA, INC.

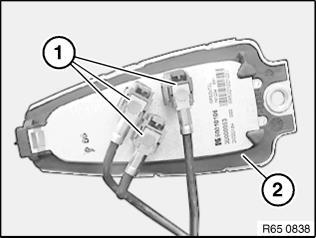

Disconnect plug connections (1) and remove aerial (2).

Fig 2: Disconnect Plug Connections (1) And Remove Aerial (2)

Courtesy of BMW OF NORTH AMERICA, INC.

After installation: Stick on empty housing for roof-mounted aerial.
