65 20 030 Removing and installing/replacing empty housing for roof-mounted

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, 2007 BMW X3, and 2006 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

65 2 010 (Knife)

WARNING:

Risk of injury!
Special tool has sharp edges!
Adapt working height to vehicle height with non-tilting and non-slip platform.
Handle special tool correctly and make sure it is positioned without tilting or slipping on the vehicle.
Special tool 65 2 010 is only permitted in conjunction with a suitable stepladder.
Risk of damage!
In order to prevent dents in the roof, do not exert any pressure on the roof.

IMPORTANT: In order to guarantee a permanent connection and adhesive curing: After bonding the empty housing for the roof-mounted aerial, wait 24 hours before driving the vehicle through a car wash.

NOTE: Clean roof. Mask roof (2) around empty housing for roof-mounted aerial (3) with yellow plastic adhesive tape (1). To do so, slide plastic adhesive tape under empty housing (3) slightly.

Fig 1: Mask Roof (2) Around Empty Housing

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage! Make sure your arms do not cross over (1) when holding special tool 65 2 010. Pull handle must always be ahead of the guiding hand (2).

Fig 2: Pull Handle Must Always Be Ahead Of The Guiding Hand (2)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage! To avoid damaging the paintwork on the roof and empty housing (3), do not fit special tool 65 2 010 skew.

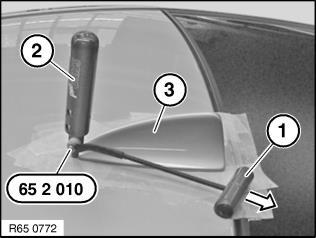

Cut through adhesive bead all round with special tool 65 2 010. Pull on handle (1) and align blade on handle (2).

Fig 3: Pull On Handle (1) And Align Blade On Handle (2)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Use sharp blades only. Replace blade if necessary.

Remove empty housing (3).

Installation: Empty housing for roof-mounted aerial is secured with window glass adhesive. All preparatory operations correspond to the Window cementing instructions.

NOTE: Replace empty housing for roof-mounted aerial if centering pins (1) on empty housing are damaged.

Bonding surface (2) must be clean and free from grease.

Fig 4: Bonding Surface (2) Must Be Clean And Free From Grease

Courtesy of BMW OF NORTH AMERICA, INC.

Position two spacers (1) on cleaned empty housing.

Dimensions:

A. 10 mm
B. 14 mm

Fig 5: Position Two Spacers (1) On Cleaned Empty Housing

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Use spacers without fail!

Apply trace of adhesive bead all around outer contour as follows. Distance between adhesive bead and edge of aerial cover: A = 6.5 mm ±1 mm

Fig 6: Apply Trace Of Adhesive Bead All Around Outer Contour

Courtesy of BMW OF NORTH AMERICA, INC.

Start and end of bead trace must have an overlap length of max. 10 mm.

IMPORTANT: To prevent the adhesive from escaping, the adhesive bead diameter must not exceed max. 1.5 mm to 2.5 mm.

NOTE: Attach the empty housing coated with adhesive by hand. To spread the adhesive better, move the housing back and forth horizontally slightly when pressing down. Secure empty housing if necessary with adhesive tape and press down uniformly. After bonding, leave vehicle to stand for at least 3 hours at room temperature.
