54 13 080 Removing and installing complete glass slide/tilt sunroof

Special tools required:

• 54 1 110 CENTERING PINS

Necessary preliminary tasks:

• Remove roofliner, see 51 44 013 REMOVING AND INSTALLING ROOFLINER (ON VERSION WITH PANORAMA SUNROOF) .
• Open rear lid

E53 only:

• Partially remove rear-compartment head airbag.

E61/E83 only:

Remove holder for handles on left and right:

• Release screws.
• Remove holder.

Fig 1: Locating Screws And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

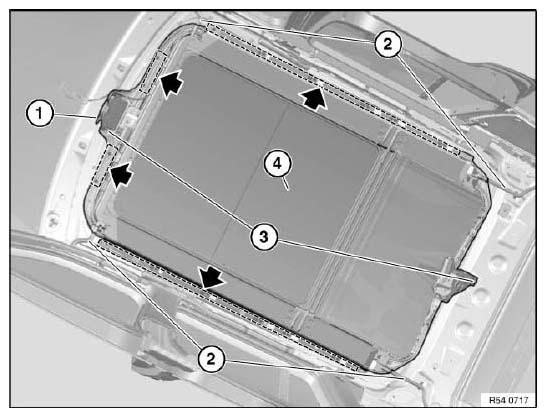

Fig 2: Water Drain Hoses And Plug

Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock and disconnect plug (1)
• Detach water drain hoses (2)
  NOTE: Check hoses for damage and moisten with water before fitting
• Release screws in marked area (when installing: fit washers on front side)

  Tightening torque: 54 12 6AZ, see 54 12 MECHANICAL SUN ROOF COMPONENTS .

• Helper must hold glass sunroof to prevent it falling out.
• Release screws (3) on and carefully lower slide/tilt sunroof (4).

• Remove slide/tilt sunroof (4) completely (through rear lid at rear).

Installation:

If necessary, remove fabric adhesive tape.

To stop grating noises, secure all screws (1) prior to installation with plastic washers (2).

If the standard screws can no longer grip, use "repair screws" (have larger threads).

Fig 3: Plastic Washers

Courtesy of BMW OF NORTH AMERICA, INC.

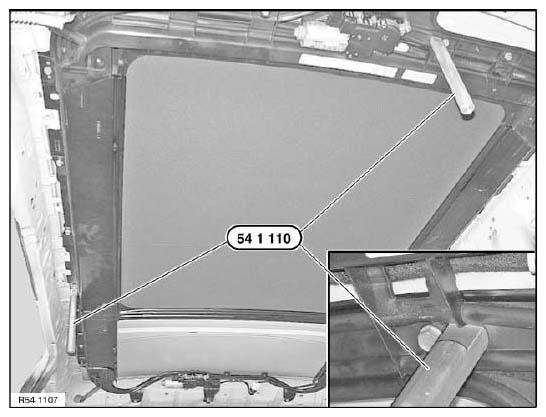

Fig 4: Special Tool (54 1 110)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

To align panorama sunroof to body-cutout, insert screws and tighten loosely.

Panorama sunroof must still be able to move in the body-cutout.

On account of leaks, panorama sunroof must be exactly aligned to body-cutout.

Insert special tool 54 1 110  into centering bores up to stop in panorama sunroof and body.

Tighten down screws.

Tightening torque: 54 12 6AZ, see 54 12 MECHANICAL SUN ROOF COMPONENTS .

E53 only:

Side centering bore omitted on body side.

Align panorama sunroof over front centering bore in longitudinal direction and align at sides over glass cover distance to body. (See next work step).
