33 11 021 Replacing Shaft Seal For Input Flange On Final Drive

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 335xi, 2008 BMW 328xi, 2007 BMW 335xi, 2007 BMW 328xi, and 2006 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 5 010
00 5 500
23 0 020
23 1 300
23 1 302
23 1 303
31 2 101
31 2 102
31 2 103
31 2 104
33 1 150
33 1 341
33 3 390
33 3 440
33 3 470
33 3 480
33 3 490

IMPORTANT:

Use only approved gear oils.

Failure to comply with this instruction will result in serious damage to the rear differential!

Necessary preliminary tasks:

Remove propeller shaft from rear differential drive flange, remove complete propeller shaft is necessary. See 26 11 000 REMOVING AND INSTALLING PROPELLER SHAFT (CARDAN UNIVERSAL JOINT) COMPLETELY

Removing drive flange:

Lift out retaining plate.

Mark position of collar nut (1) on drive shaft with peening tool.

Fig 1: Marking Position Of Collar Nut On Drive Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

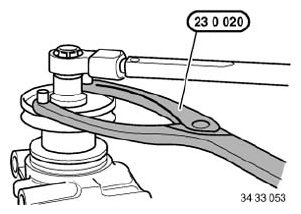

Brace drive flange with special tool 23 0 020 HOLDER and release collar nut.

Fig 2: Releasing Collar Nut With Special Tool (23 0 020)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Read and comply with 33 10 ... REAR DIFFERENTIAL: ASSIGNMENT TO MODEL SERIES .

215L:

Remove drive flange with special tools 31 2 101, 31 2 102, 31 2 103/31 2 104.

Fig 3: Identifying Special Tools (31 2 101), (31 2 102), (31 2 103) & (31 2 104)

Courtesy of BMW OF NORTH AMERICA, INC.

168L, 188L:

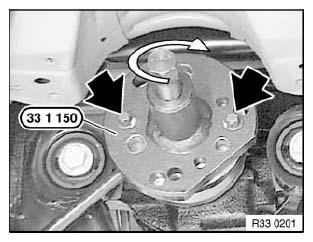

Remove drive flange with special tool 33 1 150 FIXTURE .

Fig 4: Removing Drive Flange With Special Tool (33 1 150)

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing shaft seal:

Withdraw shaft seal with special tool 00 5 010 UNIVERSAL PULLER .

Fig 5: Identifying Special Tool (00 5 010)

Courtesy of BMW OF NORTH AMERICA, INC.

Drive in new shaft seal with following special tools (depending on rear differential) as far as it will go.

168L: Use special tools 00 5 500 HANDLE FOR DRIFTS and 33 3 390 DRIFT
188L: Use special tools 00 5 500 HANDLE FOR DRIFTS and 33 3 470 DRIFT
215L: Use special tools 00 5 500 HANDLE FOR DRIFTS and 33 3 440 DRIFT

Fig 6: Identifying Special Tool (00 5 500), (33 3 390) & (33 3 470)
Courtesy of BMW OF NORTH AMERICA, INC.

Installing drive flange:

Coat sealing lips of shaft seal and sealing surface of drive flange with differential oil.

Fit drive flange.

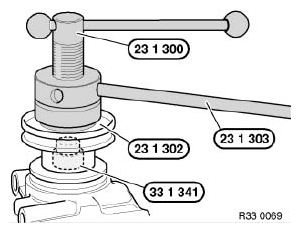

Press on drive flange with special tools 23 1 300 FIXTURE , 33 1 341 and 23 1 303, if necessary 23 1 302 until collar nut can be screwed on.

Fig 7: Identifying Special Tools (23 1 300), (33 1 341) & (23 1 303)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not under any circumstances tighten down collar nut beyond marker points in order to avoid damaging the clamping sleeve.

Tighten down collar nut (1) to point where marker points are aligned.

Fig 8: Identifying Down Collar Nut To Point Marker Points

Courtesy of BMW OF NORTH AMERICA, INC.

Drive in new retaining plate with following special tools (depending on rear differential) as far as it will go.

168L, 188L: Use special tools 00 5 500 HANDLE FOR DRIFTS and 33 3 480 DRIFT
215L: Use special tools 00 5 500 HANDLE FOR DRIFTS and 33 3 490 DRIFT

Fig 9: Identifying Special Tools (00 5 500), (33 3 490) & (33 3 480)
Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Correct rear differential fluid level. See 00 11 ... CHECKING/TOPPING UP OIL LEVEL IN REAR DIFFERENTIAL
