72 11 092 Removing and installing/replacing rear left or right seat belts (convertible)
WARNING: This page does not describe the selected car, but rather 24 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove left or right rear seat
- Remove air outlet trim grille
- Remove left or right side section of backrest

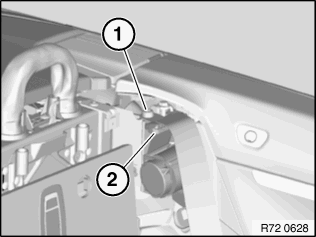

Release screw (2).
Tightening torque: see 22AZ in 72 11 SEAT BELTS .
Remove inertia reel unit (2).
Installation:
Pin (3) determines the installation position and prevents the anchor fitting from turning.
Release screw (1).
Tightening torque: see 24AZ in 72 11 SEAT BELTS .
Remove reversing clip (2).

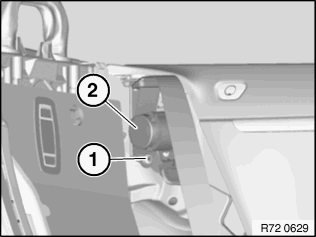

Release screw (1).
Tightening torque: see 21AZ in 72 11 SEAT BELTS .
Remove inertia reel unit (2).
Installation:
Inertia reel is coded to prevent incorrect installation.
