67 31 501 Removing and installing/replacing forward/back seat adjustment drive unit (convertible)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT SEAT

Release screws (1).

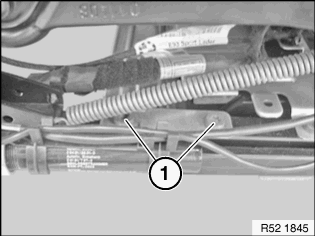

Fig 1: Identifying Screws

G00528123

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Unlock plug connections (2) and (3) and disconnect.

Carefully bend long flex shaft with jacket tube and pull out of gearing.

Pull short flex shaft including carrier plate out of gearing.

Feed out carrier plate with drive unit.

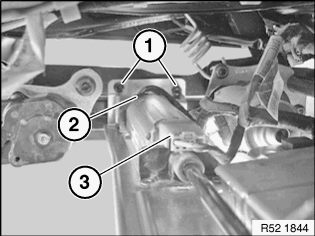

Fig 2: Identifying Connectors And Screws

G00528124

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Slide short flex shaft (1) into longitudinal seat adjustment gearing square.

Bend long flex shaft (2) upwards and slide into longitudinal seat adjustment gearing.

Make sure flex shafts are correctly seated in transmissions.

Fig 3: Identifying Short Flex Shaft And Long Flex Shaft

G06895339

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

PTFE hoses are shrink-fitted onto end pieces.

Check that hoses are free from damage.

Fig 4: Identifying PTFE Hoses

G06895580

Courtesy of BMW OF NORTH AMERICA, INC.
