65 12 070 Removing and installing/replacing amplifier (HiFi system, with CD changer) (convertible)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with Notes On Protection Against Electrostatic Damage (ESD Protection)
.
Necessary preliminary tasks:
- Disconnect Battery Negative Lead
- Remove Luggage Compartment Trim On Left .
- If necessary, remove CD Changer

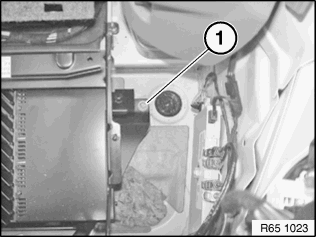

Release screws (1).

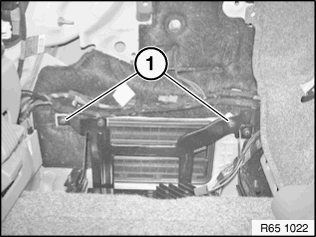

Release screw (1).

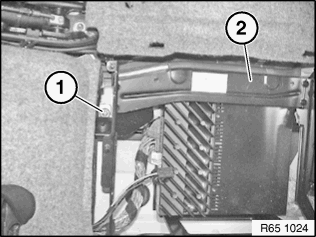

Release screw (1) and remove complete amplifier (2) with bracket.
Replacement:

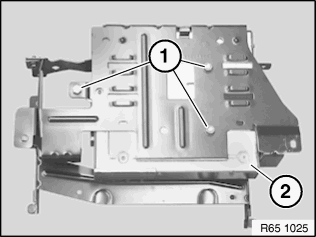

Release screws (1) and remove amplifier (2) from bracket.
