65 11 072 Removing and installing/replacing CD changer (convertible)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with Notes On Protection Against Electrostatic Damage (ESD Protection) .

NOTE: Follow instructions for Handling Optical Fibres. .

Necessary preliminary tasks:

Disconnect Battery Negative Lead
Remove luggage compartment trim on left.

Release screws (1).

Disconnect plug connections (2).

Remove CD changer (3) complete with holder.

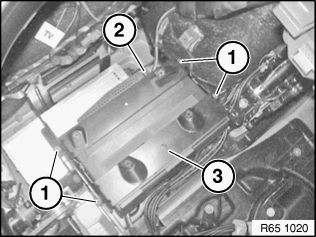

Fig 1: Identifying Screws, Connector, And CD Changer

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screws (1) on both sides and remove bracket (2) from CD changer.

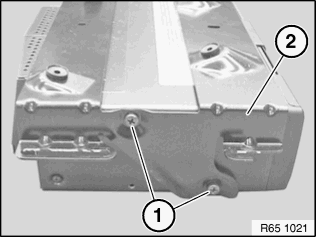

Fig 2: Identifying CD Changer Bracket And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
