64 51 001 Cleaning evaporator

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 335xi, 2012 BMW 328xi, and 2012 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

64 1 260
64 1 270

WARNING: When handling cleaning agent, observe following protection measures:

Wear protective rubber gloves and protective goggles.

If cleaning agent comes into contact with eyes or skin, wash immediately with lots of water.

IMPORTANT: To avoid dirtying vehicle interior:

Close all air vents.
Switch heating - A/C system to recirculated-air mode.
Cover carpet in work area.

NOTE: For information on cleaning agent and rinsing again, refer to Service Information .

For information on special tool, refer to Service Information Special Tools and Equipment.

Recycling:

Carry out the cleaning operation in a suitable washing bay as the emerging cleaning agent escapes through the drain openings in the transmission tunnel.

After completing cleaning, allow car to drip-dry for approx. 5 minutes.

Necessary preliminary tasks:

Remove rear underbody protection
Remove heater/air conditioner fan

IMPORTANT: Use special tool 64 1 270 on right hand drive models.

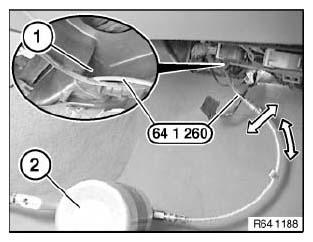

Connect special tool 64 1 260 (spray lance) to spray gun (2). Insert spray lance 64 1 260 through opening (1) into fresh air duct.

By moving spray lance (1) back and forth, spray a uniform amount of cleaning agent onto evaporator.

Fig 1: Special Tools (64 1 260), Spray Gun, Spray Lance And Spraying Directions

Courtesy of BMW OF NORTH AMERICA, INC.

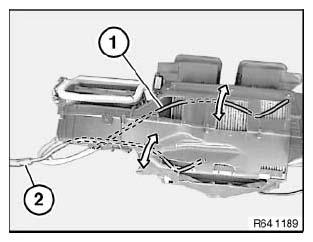

Spray lance 64 1 260 shown on removed and cut-open heater/air conditioner:

Spray lance 64 1 260 in upper end position (1)
Spray lance 64 1 260 in lower end position (2)

By moving spray lance back and forth, spray a uniform amount of cleaning agent onto evaporator.

Fig 2: Heater/Air Conditioner Upper End, Lower Positions And Spraying Directions

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Set heating - A/C system to footwell ventilation and fresh-air mode. Open windows/doors.

Start car and run heating - A/C system at maximum fan power for approx. 5 minutes in order to dry evaporator.

In order to eliminate the last remnants of cleaning agent, repeat this procedure shortly before handover to the customer.
