64 11 212 Removing and installing/replacing heater/air conditioner fan

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 335xi, 2012 BMW 328xi, and 2012 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove trim for instrument panel, bottom right
Partially release air duct at side

Disconnect plug connection (1).

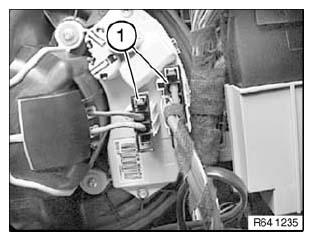

Fig 1: Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully raise lug (1) and feed out housing (2) by turning clockwise.

Installation:

Lug (1) must not be damaged and must snap audibly into place.

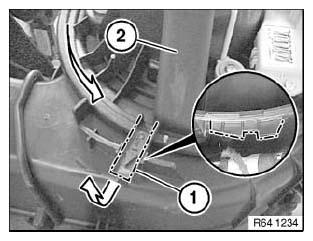

Fig 2: Lug, Housing And Removal Directions

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Replace controller for heater/air conditioner fan
