63 21 183 Removing and installing/replacing left or right tail light (on rear lid) (convertible)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with Notes On Protection Against Electrostatic Damage (ESD Protection). .

Necessary preliminary tasks:

Partially remove trim panel for rear lid .

Disconnect plug connection (1).

Release nut (2) and remove with retaining bar (3).

Tightening torque: see 3AZ in 63 21 rear light unit .

Remove rear light.

Installation:

Position lugs (4) of rear light exactly over side edge of rear lid.

Make sure retaining bar (3) is correctly seated on rear lid.

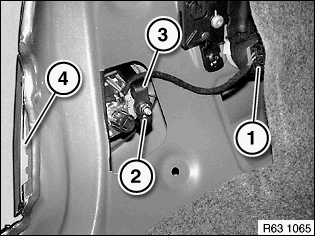

Fig 1: Identifying Connector, Lugs, Nut, And Retaining Bar

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, remove bulbs .
