63 99 315 Replacing light bulb(s) for left or right rear light (convertible)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights).

Rear light in side panel:

Release rotary clip (1) and remove cover (2).

Fig 1: Identifying Trunk Trim Panel Cover And Clip

G06180665

Courtesy of BMW OF NORTH AMERICA, INC.

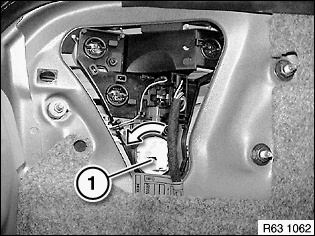

Turn socket housing (1) and pull out of rear light.

Fig 2: Turning Socket Housing

G00528047

Courtesy of BMW OF NORTH AMERICA, INC.

Turn bulb (1) and pull out of socket housing (2).

Note type of bulb (see Fig 6

Fig 3: Removing Bulb From Socket Housing

G00528048

Courtesy of BMW OF NORTH AMERICA, INC.

Rear light in rear lid:

Remove trim on rear lid .

Turn bulb holder (1) in direction of arrow and pull out of rear light (2).

Fig 4: Turning Bulb Holder In Direction Of Arrow

G04753548

Courtesy of BMW OF NORTH AMERICA, INC.

Turn bulb (1) and pull out of bulb holder (2).

NOTE:

Bulb, rear fog light (1)

Fig 5: Identifying Bulb, Rear Fog Light

G04753549

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Note type of bulb (see Fig 6

Fig 6: Identifying Rear Light Unit Bulb Types - E93

G00528051

Courtesy of BMW OF NORTH AMERICA, INC.
