63 21 180 Removing and installing/replacing left or right rear light (in side panel) (convertible)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with Notes On Protection Against Electrostatic Damage (ESD Protection).

Release rotary clip (1) and remove cover (2).

Fig 1: Identifying Trunk Trim Panel Cover And Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Unscrew nuts (2). Tightening torque: see 1AZ in 63 21 REAR LIGHT UNIT .

Remove rear light (3) in outwards direction from side panel.

Installation:

Make sure gap is uniform all round between rear light (3) and side panel.

Observe tightening sequence, first inside then outside.

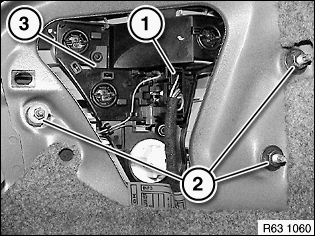

Fig 2: Identifying Rear Light, Connector, And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, remove bulbs .
