63 21 057 Replacing a socket housing for left or right rear light (rear lid) (convertible)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Partially remove trim panel for rear lid

Turn socket housing (1) and pull out of rear light.

NOTE: Convert bulbs, replace if necessary.

Note bulb type: 3 LEDs.

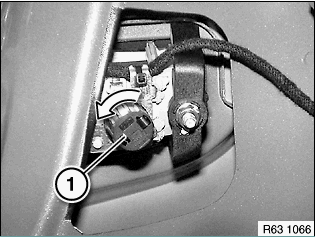

Fig 1: Turning Socket Housing

Courtesy of BMW OF NORTH AMERICA, INC.
