51 49 000 Removing and installing/replacing panel for rear lid (convertible)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LUGGAGE COMPARTMENT LIGHT

Release clips (1).

Feed out cover (2) on left/right in direction of arrow.

Fig 1: Removing Feed Out Cover Clips

G04752673

Courtesy of BMW OF NORTH AMERICA, INC.

Version with emergency release:

Detach handle (1) from clip (2).

Disconnect Bowden cable (3) from handle (1).

Installation:

Guide Bowden cable (3) through clip (2) and connect correctly in handle (1).

Fig 2: Identifying Guide Bowden Cable From Handle And Clip

G04752846

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove handle (2).

Remove warning triangle.

Release screws (3) and remove bracket (4).

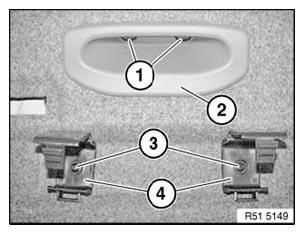

Fig 3: Identifying Bracket And Screws

G06180694

Courtesy of BMW OF NORTH AMERICA, INC.

Release clips (1).

Installation:

If necessary, replace damaged clips (1).

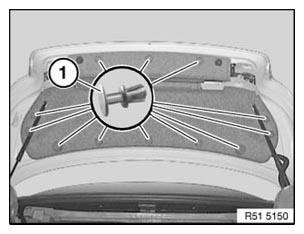

Fig 4: Identifying Clips

G06180695

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Danger of injury!
Support rear lid in fully opened position with suitable apparatus.

Release both gas struts (2) on rear lid.

Push retaining spring (1) to end of gas strut (2).
Lift out gas strut (2).

Remove trim (3).

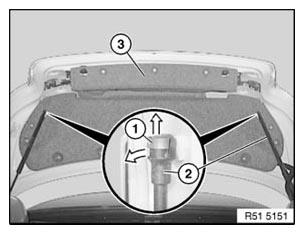

Fig 5: Identifying Retaining Spring And Gas Strut

G06180696

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For subsequent work on rear lid, clip gas struts (2) back into place.
