52 16 055 Replacing an air cushion for left or right backrest width adjustment (convertible)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR PANEL ON FRONT SEAT
Partially remove BACKREST COVER

Unclip carrier for backrest width adjustment from backrest frame.

Installation:

Make sure the carrier for backrest width adjustment is fitted correctly on the backrest frame.

Install air hoses without kinks.

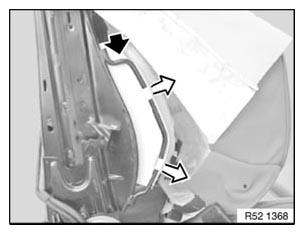

Fig 1: Identifying Backrest Width Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect air hoses.

Installation:

Adapt length of air hose from new part.

Connect air hoses to brass coupling.

If tight, (carefully) heat up the air hoses slightly.

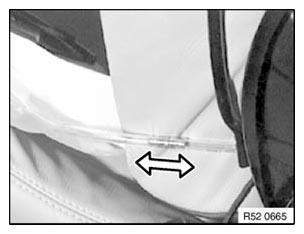

Fig 2: Identifying Air Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Carry out FUNCTION CHECK .
