52 14 198 Removing and installing or replacing rear panel on left or right front seat backrest (convertible)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1).

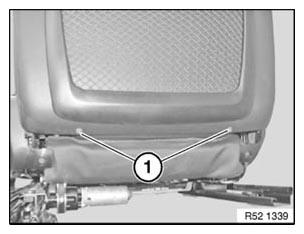

Fig 1: Identifying Front Seat Backrest Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully pull back rear panel.
Remove rear panel by pulling downward.

Installation:

Insert rear panel at top and slide upwards.

Force in guide on tunnel side.

Force in guide on airbag side.

Pull at side to check guide in backrest frame for correct seating.

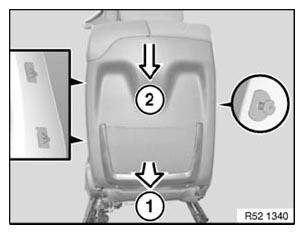

Fig 2: Identifying Rear Panel

Courtesy of BMW OF NORTH AMERICA, INC.
