52 14... Removing and installing or replacing trim cover (headrest trim) on left or right front seat (convertible)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove trim for release handle
Remove head restraint. See head restraint (up to 09/08) or crash-active headrest (from 09/08) .

Release screws (1).

Remove trim cover by pulling upwards.

Fig 1: Identifying Trim Cover Screws

G06180781

Courtesy of BMW OF NORTH AMERICA, INC.

Remove slide (1) for headrest guide cover.

Pull off foam (2) upwards and to side.

Fig 2: Identifying Slide And Foam

G06180782

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove trim cover (2) for seat belt guide.

Installation:

Insert mandrel straight.

Fig 3: Identifying Trim Cover Screws

G06180783

Courtesy of BMW OF NORTH AMERICA, INC.

Remove trim cover (1).

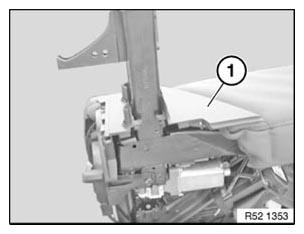

Fig 4: Identifying Trim Cover

G06180784

Courtesy of BMW OF NORTH AMERICA, INC.
