52 14 392 Removing and installing/replacing front left or right crash-active headrest (from 09/08) (convertible)

Switch off the ignition!

Necessary preliminary work:

• Move head restraint towards top
• Remove BELT GUIDE
• Remove RELEASE HANDLE COVER

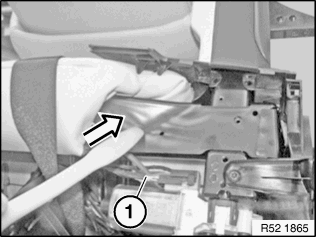

Unlock PLUG CONNECTION for crash-active headrest and disconnect.

Fig 1: Unlocking Connector

Courtesy of BMW OF NORTH AMERICA, INC.

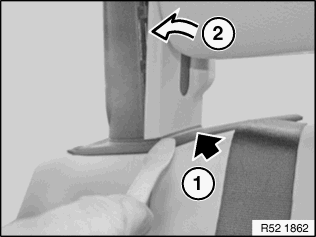

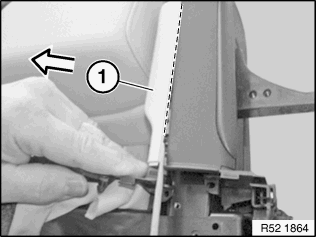

Unclip cover (1) immediately with plastic wedge and partially detach with head restraint.

Fig 2: Unclipping Cover Using Plastic Wedge

Courtesy of BMW OF NORTH AMERICA, INC.

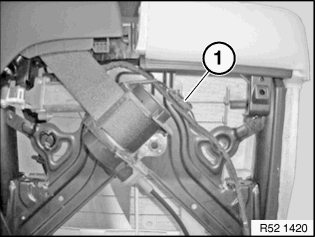

Feed out plug connection between backrest frame and tower trim.

Fig 3: Feeding Out Plug Connection Between Backrest Frame And Tower Trim

Courtesy of BMW OF NORTH AMERICA, INC.

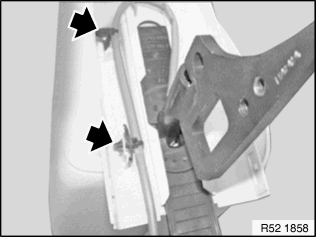

Release and remove both clips.

Fig 4: Identifying Clips

Courtesy of BMW OF NORTH AMERICA, INC.

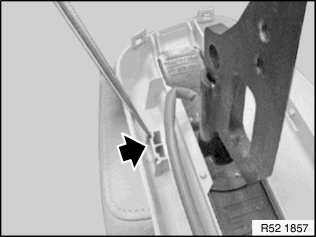

If necessary, shorten upper clip mount.

Residual height of 3 mm permitted.

Fig 5: Identifying Clip Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Measure position for new cable strap (1).

A. 110 - 115 mm

Fig 6: Measuring Position For New Cable Strap

Courtesy of BMW OF NORTH AMERICA, INC.

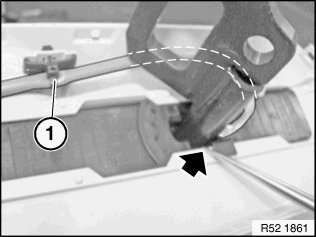

Note new cable routing.

Cable is secured only at lower clip mount.

Fasten cable to lower clip mount (1) to measured length with cable strap.

Check whether slide is closed.

Fig 7: Identifying Clip Mount

Courtesy of BMW OF NORTH AMERICA, INC.

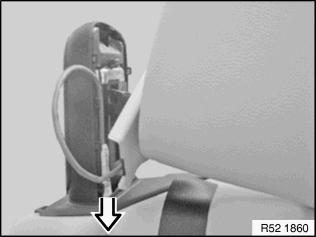

Feed in connector and pull cable downwards through tower trim.

Fig 8: Feeding In Connector And Pulling Cable Downwards Through Tower Trim

Courtesy of BMW OF NORTH AMERICA, INC.

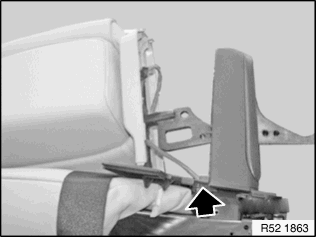

1. Feed lower cover at an angle into ring cover.

2. Clip in complete cover from top downwards.

Fig 9: Feeding Lower Cover At Angle Into Ring Cover And Clipping-In Complete Cover From Top Downwards

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retighten cable (1) and lock plug connection.

Keep contact surface clear for belt guide.

Fig 10: Identifying Cable

Courtesy of BMW OF NORTH AMERICA, INC.
