52 14 041 Removing and installing or replacing inner cover on left or right front seat (convertible)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

NOTE: Press seat belt pretensioner to the side.

Release screws.

Remove cover.

Installation:

Fit tab (1) of seat cover on cover (2).

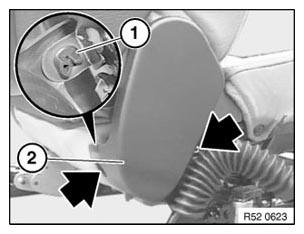

Fig 1: Identifying Tab And Cover
G06180826Courtesy of BMW OF NORTH AMERICA, INC.
