41 21 510 Front Left Door Pillar Replacement (Front Side Panel Removed) (Coupe)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

For stripping and rigging operations, refer to FR number 41 21 510 .

Spot-weld bonding is used on this vehicle. Observe specific Procedure .

Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.

Use only approved Spot-Welding Apparatus for repairs!

Place vehicle on straightening bench.

Following new body parts are required:

A-pillar, outer
Support carrier, wheel arch, outer
Shaped part, support carrier (not shown)
Shaped part, A-pillar, inner (not shown)

Fig 1: Front Left Door Pillar Components
Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cuts in accordance with specified measurements and cut.

IMPORTANT: Cut outer plate only for following severance cuts.

Measurement a = approx. 130 mm from edge of rectangular hole.

Measurement b = approx. 160 mm from centerpoint of 12 mm dia. bore.

Open weld joints in areas (1).

Installation:

Weld in Reinforcing Panels at all severance cuts.

Apply window glass adhesive to Cavity Acoustic Baffles (2).

Fig 2: Cavity Acoustic Baffles, Reinforcing Panels And Weld Joint Areas

Courtesy of BMW OF NORTH AMERICA, INC.

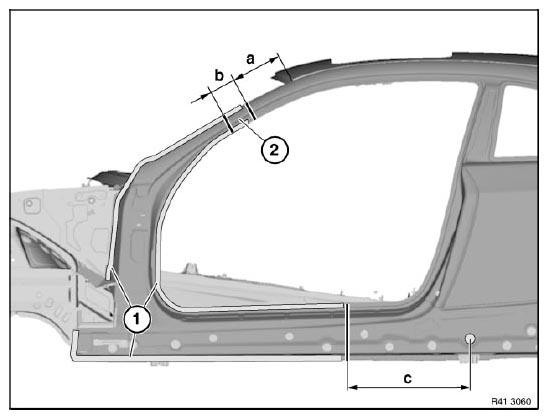

Mark severance cuts in accordance with specified measurements and cut.

IMPORTANT: Cut outer plate only for following severance cuts.

Measurement a = approx. 150 mm from roof edge.

Measurement b = approx. 80 mm below severance cut a.

Measurement c = approx. 500 mm before hole dia. 20 mm.

Open weld joints in areas (1).

Installation:

Sheet panel (2) is needed again to seal cowl.

Fig 3: Weld Joint Areas, Sheet Panel And Measurement Areas

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: For following severance cut, do not damage sunroof water drain hose.

Mark severance cut (1) in accordance with measurement and cut.

Measurement a = approx. 190 mm from roof edge.

Fig 4: Severance Cut Mark And Measurement Area

Courtesy of BMW OF NORTH AMERICA, INC.

Open weld joint in area (1).

IMPORTANT: Do not damage sunroof water drain hose (2).

Fig 5: Open Weld Joints Areas And Sunroof Water Drain Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Roughly cut outer and underlying metal panel in areas (1).

Take off door pillar.

Fig 6: Door Pillar Metal Panel Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip water drain hose for sliding sunroof (1).

Open weld joints in areas (2).

Remove reinforcements (3) and (4).

Installation:

Adjust new components (3) and (4) to fit after lacquer replica application on body.

Also adjust new A-pillar component to fit.

Fig 7: Sunroof, Weld Joint Areas And Reinforcements

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Mark new part in accordance with severance cuts above and cut.

Installation:

Apply window glass adhesive to Cavity Acoustic Baffle (1).

Fig 8: Cavity Acoustic Baffle Adhesive Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Apply Adhesive in areas (1).

Adjust new part to fit with straightening attachment or universal mount.

Weld in reinforcing panels at all severance cuts.

Fig 9: Adhesive Application Areas

Courtesy of BMW OF NORTH AMERICA, INC.
