41 31 010 Outer Roof Skin Replacement (Version With Slide/Tilt Sunroof)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

See BODY, GENERAL for general instructions.

STRIP DOWN vehicle.

Observe procedure for REPAIR STAGE 2 .

Following new body parts are required:

Roof outer skin, slide/tilt sunroof

Courtesy of BMW OF NORTH AMERICA, INC.

Release 4 screws (1) in roof channel.

Fig 1: Roof Channel Screws

G04726919

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Weld Joints Areas

G04752331

Courtesy of BMW OF NORTH AMERICA, INC.

Open weld joints in area (1).

Release Adhesive Areas (layout, see next work steps) and remove roof outer skin.

Installation:

Fit new part on body. Fit windscreen for positioning.

Seal weld seams and screws with sealing compound.

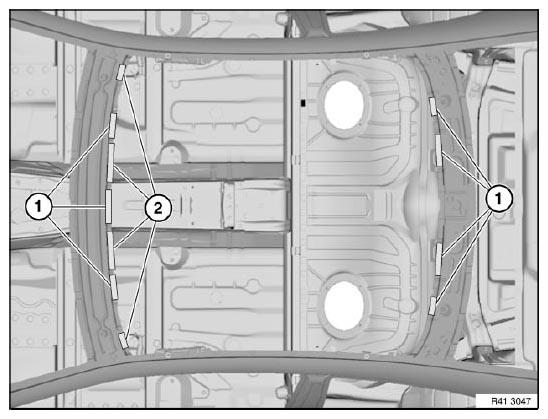

Fig 3: Adhesive And Sealing Compound Area

G04752332

Courtesy of BMW OF NORTH AMERICA, INC.

Apply sealing compound in areas (1).

Apply Adhesive in areas (2).
