Necessary preliminary tasks
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
- Draw off and dispose of hydraulic fluid from fluid reservoir
- Remove FRONT UNDERBODY PROTECTION
Release banjo bolt and detach pressure line from vane pump.
Installation:
Replace all sealing rings.
Make sure pressure line is laid without tension and with sufficient spacing to adjoining components.
Tightening torque, see 8AZ in 32 41 PUMP AND OIL SUPPLY
Expose pressure line up to connection on power steering gear.

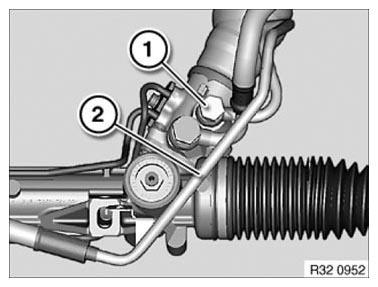

Release banjo bolt (1) and remove pressure line (2).
Installation:
Replace all sealing rings.
Make sure pressure line is laid without tension and with sufficient spacing to adjoining components.
Tightening torque, see 9AZ in 32 41 PUMP AND OIL SUPPLY .
