51 47 490 Removing and installing / replacing front assembly underside protection

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Illustration created using E87 120i as an example. There may be differences in detail in the case of other models.

Release screws (1).

Pull underbody protection (2) forward under bumper trim (3).

Installation:

Centre underbody protection (2) and tighten down screws (1).

Fig 1: Underbody Protection, Bumper Trim, Screws And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

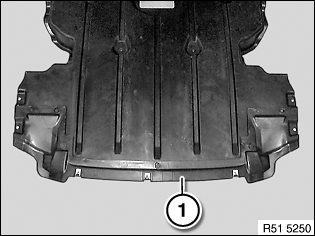

If necessary, modify or replace front section (1) of underbody protection

Fig 2: Underbody Protection Front Section

Courtesy of BMW OF NORTH AMERICA, INC.
