32 41 332 Replacing delivery line for power steering

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of poisoning if oil is ingested/absorbed through the skin!

Risk of injury if oil comes into contact with eyes and skin!

IMPORTANT: Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.

Close off pipe connections with plugs.

Recycling:

Catch and dispose of hydraulic fluid in a suitable container.

Observe country-specific waste-disposal regulations

Necessary preliminary tasks:

Draw off and dispose of hydraulic fluid from fluid reservoir
Remove front underbody protection
Remove radiator

Release banjo bolt and detach pressure line from vane pump.

Installation:

Replace sealing rings.

Make sure hydraulic line is laid without tension and with sufficient spacing to adjoining components.

For tightening torque refer to 32 41 8AZ in 32 41 PUMP AND OIL SUPPLY .

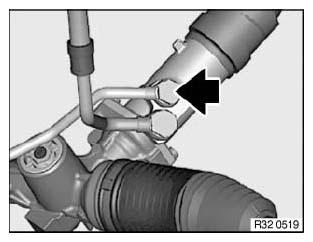

Fig 1: Banjo Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Expose pressure line up to connection on power steering gear.

Release banjo bolt and disconnect pressure line.

Installation:

Replace sealing rings.

Make sure hydraulic line is laid without tension and with sufficient spacing to adjoining components.

For tightening torque refer to 32 41 9AZ in 32 41 PUMP AND OIL SUPPLY .

Fig 2: Banjo Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Fill and bleed hydraulic system
Check pipe connections for leaks
