26 11 000 Removing and installing complete propeller shaft (flexible disc at rear) (AWD coupe)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2013 BMW 328i, 2012 BMW 328i, 2011 BMW 328i, 2010 BMW 335i, and 2010 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

With four-wheel drive and on renewal only:
After installation with diagnosis system under control unit function

Perform function check of transfer box (calibration)

Necessary preliminary work:

Remove underbody protection with holders
Remove complete EXHAUST SYSTEM
Remove heat shields

IMPORTANT:

To avoid buzzing sound after refitting the propeller shaft:

The flexible disc connection (1) on the front and back at the propeller shaft must be marked in one plane with the flexible disc (2) and the three-bolt flange (3) before removal.
During installation the three-bolt flange (3) must be forced back together again with the flexible disc (2) in the same position.
Replace ZNS bolts and self-locking nuts.

Fig 1: Refitting Propeller Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

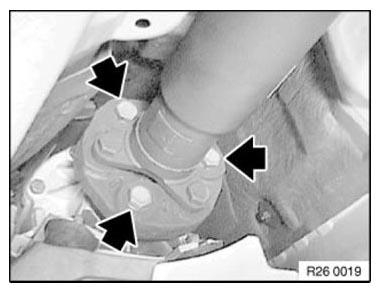

Release screws.

Installation note:

Replace ZNS bolts and self-locking nuts.
Grip mounting bolts of flexible disc at nuts and tighten down by way of bolts.

Fig 2: Identifying Flexible Disc Mounting Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws/bolts to specified torque.

Secure angle of rotation special tool 00 9 120 with magnets 00 9 130 to vehicle underbody and screw down further according to angle of rotation.

Tightening torque, 26 11 1AZ .

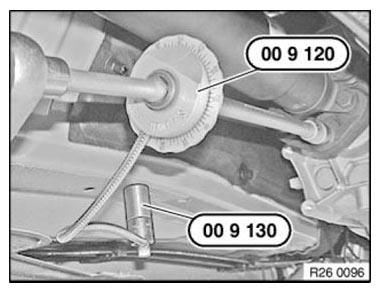

Fig 3: Securing Angle-Of-Rotation Using Special Tool 00 9 120 With Magnets 00 9 130

Courtesy of BMW OF NORTH AMERICA, INC.

Release flexible disc screws at rear.

Installation note:

Replace ZNS bolts.

Tighten down screws/bolts to specified torque.

Secure angle of rotation special tool 00 9 120 with magnets 00 9 130 to vehicle underbody and screw down further according to angle of rotation.

Tightening torque, 26 11 4AZ .

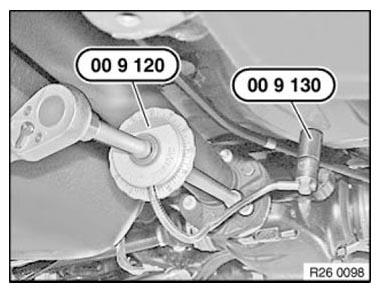

Fig 4: Securing Angle-Of-Rotation Using Special Tool 00 9 120 With Magnets 00 9 130

Courtesy of BMW OF NORTH AMERICA, INC.

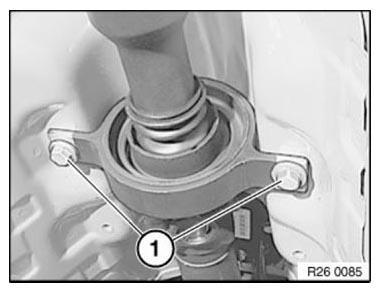

Grip propeller shaft at center mount and release screws.

Tightening torque: 26 11 6AZ .

Detach propeller shaft from transmission output flange and remove towards bottom.

Fig 5: Identifying Propeller Shaft Centre Mount With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check centering mount.

If necessary, replace damaged CENTER BEARING .

Grease centering mount.

Grease: Molykote Longterm 2 PLUS (Dow Corning) or Optimol Olistamoly 2 (Optimol-lwerke)

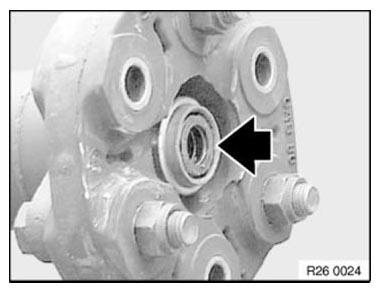

Fig 6: Locating Centering Mount

Courtesy of BMW OF NORTH AMERICA, INC.
