Version 1:

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Move selector lever to parking position "P".

Grip clamping sleeve (1) and slacken nut (2).

Installation:

Adjust (A5S 360R / 390R, A4S 200R, 6HP26Z/19Z) or (GA6L45R) selector lever.

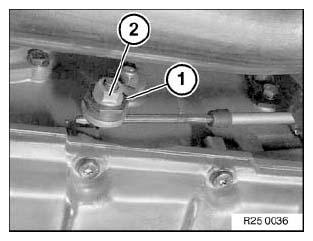

Fig 1: Clamping Sleeve And Nut
G04726193Courtesy of BMW OF NORTH AMERICA, INC.

Detach retainer (3) downwards using a screwdriver.

Fig 2: Clamping Sleeve, Slacken Nut And Retainer
G04726075Courtesy of BMW OF NORTH AMERICA, INC.
