Necessary preliminary tasks:

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove heat shields.
Remove TRANSMISSION CROSSMEMBER .
Remove TRANSMISSION OIL SUMP .

IMPORTANT: Support transmission with workshop jack.

Unlock and disconnect connector (1) by turning.

Fig 1: Turning Plug

G06889516

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 24 2 390 in sealing sleeve (1).

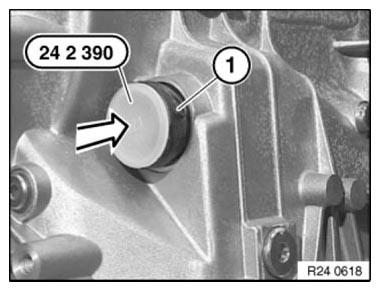

Fig 2: Inserting Sealing Sleeve Using Special Tool 24 2 390

G06889517

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock sealing sleeve with slide (1).

Fig 3: Unlocking Sealing Sleeve With Slide

G06889518

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Note position of sealing cup.

Pull out sealing cup (1).

Installation note:

Screw in sealing sleeve partially (lug in upper area). Turn until lug engages in groove of transmission. Slide in sealing cup.

Lug on sealing sleeve must not be damaged!

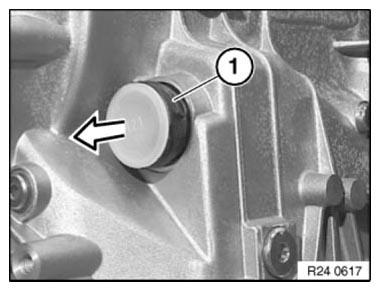

Fig 4: Pulling Out Sealing Sleeve

G06889519

Courtesy of BMW OF NORTH AMERICA, INC.
