17 11 100 Removing and installing/replacing coolant expansion tank (N46, N45, N52, N52K, N51, N53)

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Drain Coolant from radiator

Unlock and disconnect plug on coolant level switch (1).

Release and disconnect coolant hoses (2).

Release bolts.

For tightening torque refer to 17 11 3AZ in 17 11 RADIATOR, EXPANSION TANK, LINES (N52, N52K, N51, N54, N45, N46) .

Remove coolant expansion tank (3).

Installation:

Insert locating pin in rubber grommet.

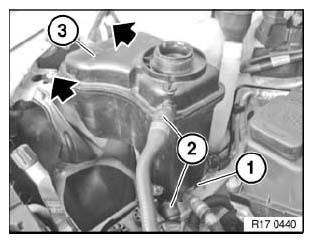

Fig 1: Coolant Level Switch, Coolant Hoses, Mounting Bolts And Expansion Tank

Courtesy of BMW OF NORTH AMERICA, INC.

Check cooling system for Leaks.
