17 11 035 Removing and installing/replacing fan cowl with electric fan (N51)

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out fault memory of DME control unit
Switch off ignition
Remove Intake Duct
Automatic only:
Remove front Underbody Protection

Automatic only:

Release bolt.

Detach cooler (1) for automatic transmission from fan cowl (2).

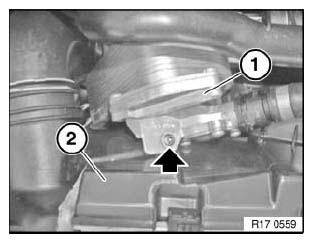

Fig 1: Cooler, Mounting Screw And Fan Cowl

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug (1) and remove.

Release nut and remove bracket (2) for remove bracket for muffler

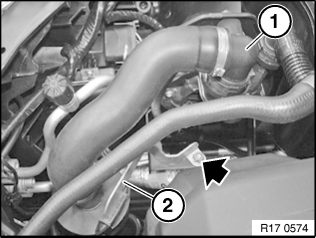

Fig 2: Hose, Bracket And Mounting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release, unlock and disconnect plug connection (1) in direction of arrow from fan cowl.

Detach cable strap (2) from fan cowl.

Release screw.

Installation:

Make sure cable guide (3) is installed in correct position between fan cowl and radiator.

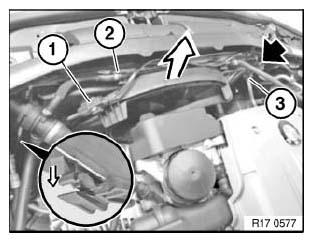

Fig 3: Fan Cowl Plug Connection, Cable Strap, Cable Guide, Mounting Screw And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug (1) and remove.

Unclip line (2) from fan cowl.

Unlock catch in direction of arrow.

Remove fan cowl towards top

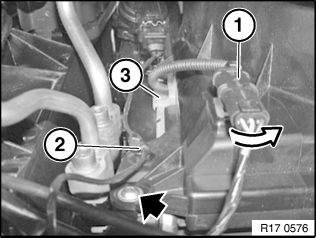

Fig 4: Fan Cowl, Plug, Line And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Make sure fan cowl (1) and bracket (2) are in correct installation position.

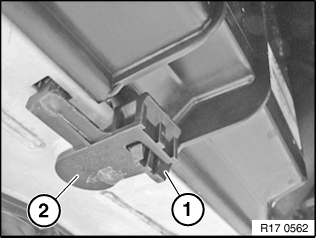

Fig 5: Fan Cowl And Retaining Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault messages.

Now clear the fault memory.
