13 Removing intake duct 3-Series (N52/ N52K/ N51/ N53)

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Release screws.

Unlock air intake hose (1) sideways and detach.

Remove intake duct (2) in direction of arrow.

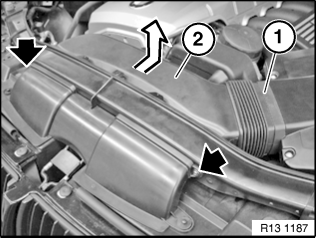

Fig 1: Hose, Intake Duct, Mounting Screws And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.
