11 21 531 Replacing all crankshaft main bearings (N51)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 2 590
11 4 251
11 4 252
11 4 470

IMPORTANT: Aluminium-magnesium materials.

No steel screws/bolts may be used due to the threat of electrochemical corrosion.

A magnesium crankcase requires aluminium screws/bolts exclusively.

Aluminium screws/bolts must be replaced each time they are released .

Aluminium screws/bolts are permitted with and without color coding (blue).

For reliable identification:

Aluminium screws/bolts are not magnetic .

Jointing torque and angle of rotation must be observed without fail (risk of damage).

Necessary preliminary tasks:

Remove Crankshaft

Check setting of oil spray nozzles, adjusting if necessary:

Attach special tool 11 4 251 to screw connection on main bearing.

NOTE: Special tool 11 4 252 must be pre-installed at the seventh main bearing block.

For tightening torque refer to 5AZ in 11 11 CRANKCASE .

Fig 1: Special Tools (11 4 252), (11 4 251), Spray Nozzle And Position

Courtesy of BMW OF NORTH AMERICA, INC.

Remove crankshaft (1).

Fig 2: Bearing Shells And Guide Bearing Shell

Courtesy of BMW OF NORTH AMERICA, INC.

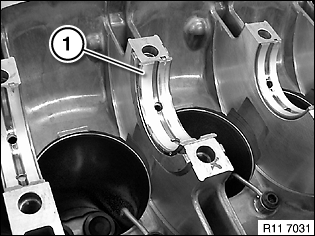

NOTE: Pilot bearing shell (1) at the fourth bearing block is a thrust bearing.

Fig 3: Pilot Bearing Shell

Courtesy of BMW OF NORTH AMERICA, INC.

Remove bearing shells (1).

Fig 4: Bearing Shells

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Bearing shell (1) with lubricant groove must be fitted in crankcase upper section.

Bearing shell (2) without lubricant groove must be fitted in crankcase lower section (bedplate).

Fig 5: Bearing Shells With And Without Lubricant Groove

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Bearing classification (1) on crankcase lower section (values from 1 to 3).

Bearing classification (2) of connecting rod bearings (b/r).

Fig 6: Connecting Rod Bearing Classification

Courtesy of BMW OF NORTH AMERICA, INC.

Bearing classification (1) on crankcase (see table : values of A/B/C).

Installation:

When all the letters and number code have been determined, the color of the bearing shells must be allocated (see table ).

IMPORTANT: Engine damage will result if a small bearing play is determined.

The color combination Yellow and Red must not be fitted. Possible color combinations (see table ).

Fig 7: Bearing Classification

Courtesy of BMW OF NORTH AMERICA, INC.

BEDPLATE SPECIFICATION

(A1) Bedplate / Yellow	(B1) Bedplate / Yellow	(C1) Bedplate / Green
(A1) Crankcase / Yellow	(B1) Crankcase / Green	(C1) Crankcase / Green
(A2) Bedplate / Green	(B2) Bedplate / Green	(C2) Bedplate / Green
(A2) Crankcase / Yellow	(B2) Crankcase / Green	(C2) Crankcase / Red
(A3) Bedplate / Green	(B3) Bedplate / Red	(C3) Bedplate / Red
(A3) Crankcase / Green	(B3) Crankcase / Green	(C3) Crankcase / Red

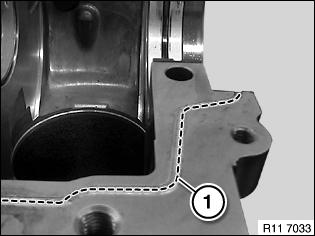

Clean sealing faces (1).

IMPORTANT: Do not use any metal-cutting tools.

Clean sealing faces with special tool 11 4 470 only.

Fig 8: Sealing Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

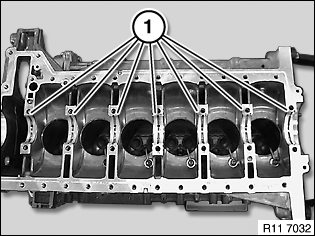

Insert all bearing shells (2 and 3).

NOTE: Bearing shell at the fourth bearing block is a thrust bearing.

Fig 9: Bearing Shells

Courtesy of BMW OF NORTH AMERICA, INC.

Determine bearing play with special tool 00 2 590.

Installation:

All measuring points must be free from oil and grease.

Use used screws to determine bearing play.

Set up Crankcase Lower Section with bearing shells.

Fig 10: Bearing Shells And Guide Bearing Shell

Courtesy of BMW OF NORTH AMERICA, INC.

Remove lower crankcase.

Read off bearing play at width of flattened plastic thread and measurement scale.

Crankshaft bearing clearance radial.

Installation:

Remove plastic thread.

Apply a light coat of oil to bearing shells and crankshaft.

Fig 11: Checking Bearing Play

Courtesy of BMW OF NORTH AMERICA, INC.

Install Crankcase Lower Section.

Assemble engine.
