12 42 500 Removing And Installing Or Replacing Battery Positive Lead (Between Alternator, Starter And Battery Positive Terminal) (N62)
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW X5, 2010 BMW 650i, 2009 BMW X5, 2009 BMW 650i, and 2008 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
REFERENCE CHART (N62)
| Work step | Note: |
|---|---|
| Switch off ignition | |
| Disconnect battery negative lead | Follow instructions for disconnecting and connecting battery |
| Disconnect battery positive lead at jump start connection point | Tightening torque: 12 42 1AZ . See WIRES TO STARTER for specs. |
| REMOVE SUCTION FILTER HOUSING . | |
| REMOVE RIGHT FRESH AIR DUCT . | |
| Remove centre equipment compartment heater bulkhead. | |
| Remove INTAKE AIR MANIFOLD | |
| REMOVE A/C COMPRESSOR DRIVE BELT . | |
| Detach battery positive lead from alternator | Tightening torque: 12 31 1AZ . See ALTERNATOR WITH DRIVE AND MOUNTING PARTS for specs. |
| LIFT ENGINE HOOD INTO ASSEMBLY POSITION . | |
| SECURE ENGINE IN INSTALLATION POSITION WITH SPECIAL TOOL | |
| Release grounding strap on engine support arm. | |
| RELEASE A/C COMPRESSOR AND PLACE TO ONE SIDE . | |
| Remove EXHAUST SYSTEM | |
| Remove right exhaust manifold | |
| Lower front axle | |
| Remove STARTER MOTOR . | Tightening torque: 12 41 4AZ . See STARTER AND MOUNTING PARTS for specs. |
| Detach battery positive lead from support point/terminal | Tightening torque: 12 42 1AZ . See WIRES TO STARTER for specs. |

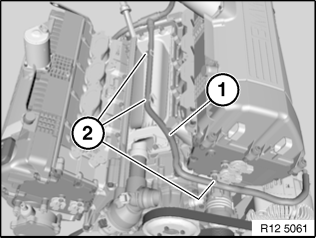

Unclip battery positive lead (2) from holders (1).
Installation:
Make sure battery positive lead is in correct installation position.
Danger of short circuits.
Add final details to vehicle.
Check function of DME.
