17 11 046 Removing and installing / replacing module carrier

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2008 BMW 328xi, 2008 BMW 328i, 2008 BMW 323i, 2007 BMW 328xi, and 2007 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove coolant cooler.
If necessary, slacken power steering cooling coil; refer to Removing Power Steering Cooling Coil .
If necessary, slacken A/C condenser and secure against damage and against falling down. Refer to Remove A/C Condenser .

Release damping pieces.

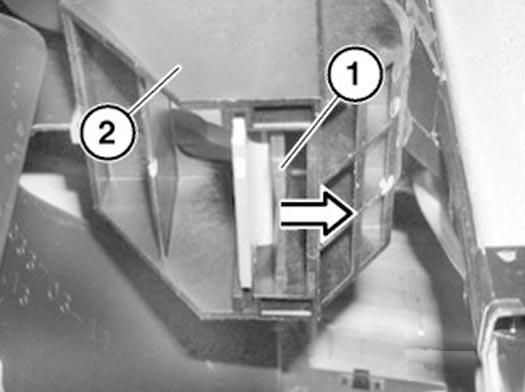

Fig 1: Identifying Module Carrier Damping Pieces

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock (1) and remove holder (2) downwards.

Illustration shows the left holder: The same procedure applies to the opposite side.

Installation: Rubber mounts fall out easily, ensure correct installation position.

S65 only: Engine oil cooler loose, see Removing oil cooler.

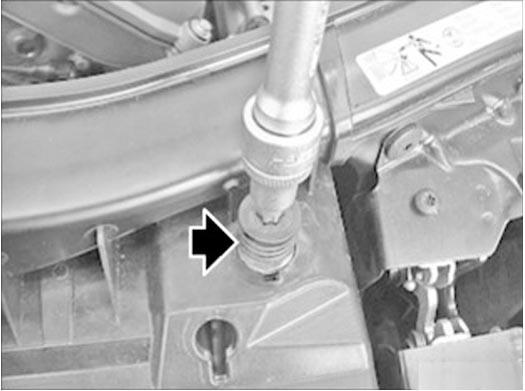

Fig 2: Identifying Module Carrier Lock And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Remove module carrier (1) individually towards bottom.

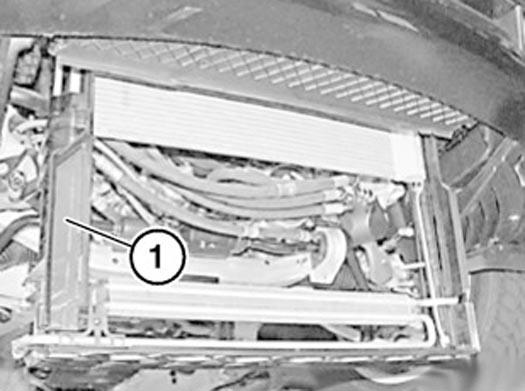

Fig 3: Identifying Module Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

When replacing module carrier:

Convert power steering Cooling Loop .
