25 11 250 Removing and installing/replacing vibration damper
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2008 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove shift lever cover.
- Remove Shift Lever Knob .

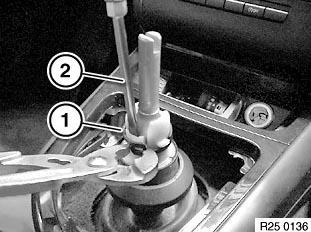

Open clamp (1) on vibration damper with pliers.
Unlock vibration damper with screwdriver (2) (there is a locking notch on one side only).

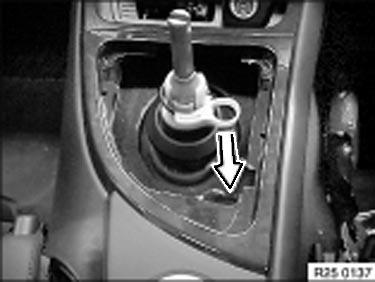

Lift out vibration damper.
Installation:
In the case of a new vibration damper which has been attachment to the shift lever, only the retainer (1) still needs to be unlocked.
Make sure the vibration damper is correctly engaged in the shift lever.
