25 11 071 Replacing knob for shift lever
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2008 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
As from 03/07 there are two different versions. Version 2 can give rise to damage if incorrectly removed.
Version 1: Shift lever knob and shift lever cover separate.
Version 2: Shift lever knob and shift lever cover are a single part.
Version 1 (shift lever knob and shift lever cover separate):

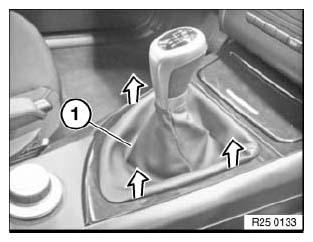

Press installation frame of gaiter (1) together a little and remove gaiter from centre console.
IMPORTANT:
Start removing at front left, otherwise the frame may be damaged.
Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:

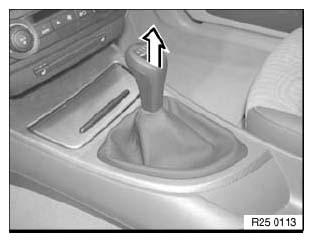

Do not twist shift lever knob during removal as this would cause the turning lock in the knob to shear off.
Tug firmly to remove knob.
Courtesy of BMW OF NORTH AMERICA, INC.
Installation:
Fit shift lever knob on shift lever, align and press on until it snaps noticeably into place.
Installation:

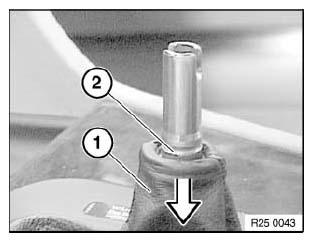

Push gaiter (1) down until groove (2) is fully exposed.
Courtesy of BMW OF NORTH AMERICA, INC.
Version 2 (shift lever knob and shift lever one single part):
Press installation frame of gaiter (1) together a little and remove gaiter from centre console.
IMPORTANT:
Start removing at front left, otherwise the frame may be damaged.
Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
Do not twist knob during removal as this would cause the turning lock in the knob to shear off.
Tug firmly to remove knob.
Installation:
Fit knob on shift lever, align and press on until it snaps noticeably into place.
