25 11 ... Replacing U-gaiter

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2008 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Shift Lever
Remove Vibration Damper (if fitted).

Detach U-gaiter from shift lever.

If necessary, rub inside of moulded section (1) beforehand with Circolight.

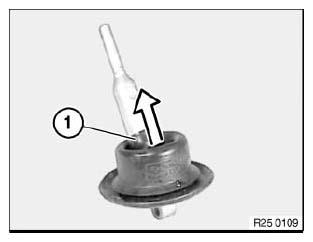

Fig 1: Detaching U-Gaiter From Shift Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Degrease shift lever (1)
Coat inside of moulded section (2) with Circolight
Pull U-gaiter from above over shift lever and align
Arrow on upper lip (3) must point crossways to mount eye (5) in direction of travel

Fig 2: Identifying Shift Lever, Mount Eye And U-Gaiter Assembly
Courtesy of BMW OF NORTH AMERICA, INC.

Key:

Shift lever
U-gaiter moulded section
U-gaiter lip
U-gaiter bead
Mount eye
