33 32 180 Removing and installing/replacing left or right toe arm

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 335i, 2008 BMW 328i, 2008 BMW 323i, 2007 BMW 335i, and 2007 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the toe arm is detached from the rear axle carrier/wheel carrier, it is necessary after reinstallation to carry out a wheel/chassis alignment check.

Necessary preliminary tasks:

Remove Rear Wheel. .

Mark position of eccentric screw to rear axle carrier.

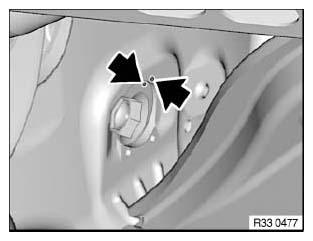

Fig 1: Identifying Position Of Eccentric Screw To Rear Axle Carrier

G04726511

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw.

Installation:

If necessary, turn toe arm by hand.

For tightening torque refer to 33 32 8AZ in 33 32 CONTROL ARMS AND STRUTS .

Fig 2: Identifying Toe Arm Screw

G04726512

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1) and remove eccentric washer (2).

Pull out eccentric screw and remove toe arm (3).

Installation:

Note insertion direction of eccentric screw.

Align eccentric screw by means of marking to rear axle carrier.

Fit eccentric washer (2).

Replace nut (1).

For tightening torque refer to 33 32 7AZ in 33 32 CONTROL ARMS AND STRUTS .

Fig 3: Identifying Eccentric Washer, Nut And Toe Arm

G04726513

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Perform Chassis Alignment Check
