35 11 000 Removing and installing complete bearing block for foot pedal

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2008 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove CLUTCH PEDAL .

Release screws (1) and gently press clutch master cylinder (2) to one side.

Installation:

Line remains connected.

Replace self-locking nuts.

Tightening torque, see 21 52 4AZ in 21 52 CLUTCH OPERATION (HYDRAULIC) .

Fig 1: Identifying Clutch Master Cylinder Screws

Courtesy of BMW OF NORTH AMERICA, INC.

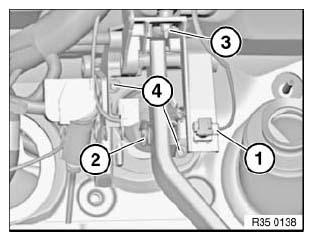

Disconnect plug connection (1).

Remove locking clip (2) and pull out pin.

Unscrew nut (3).

Release nuts (4) and gently swivel bearing block to left and remove.

Installation:

Tighten nuts (4) before nut (3).

Replace self-locking nuts.

Tightening torque, see 35 11 1AZ in 35 11 PEDAL ASSEMBLY CONSOLE .

Fig 2: Identifying Locking Clip And Pull Out Pin

Courtesy of BMW OF NORTH AMERICA, INC.
