36 11 105 Removing and installing RDC (Tire Pressure Control) control unit (LOW COST)
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2008 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection).
Necessary preliminary tasks
- Remove COVER FOR CARBON CANISTER .

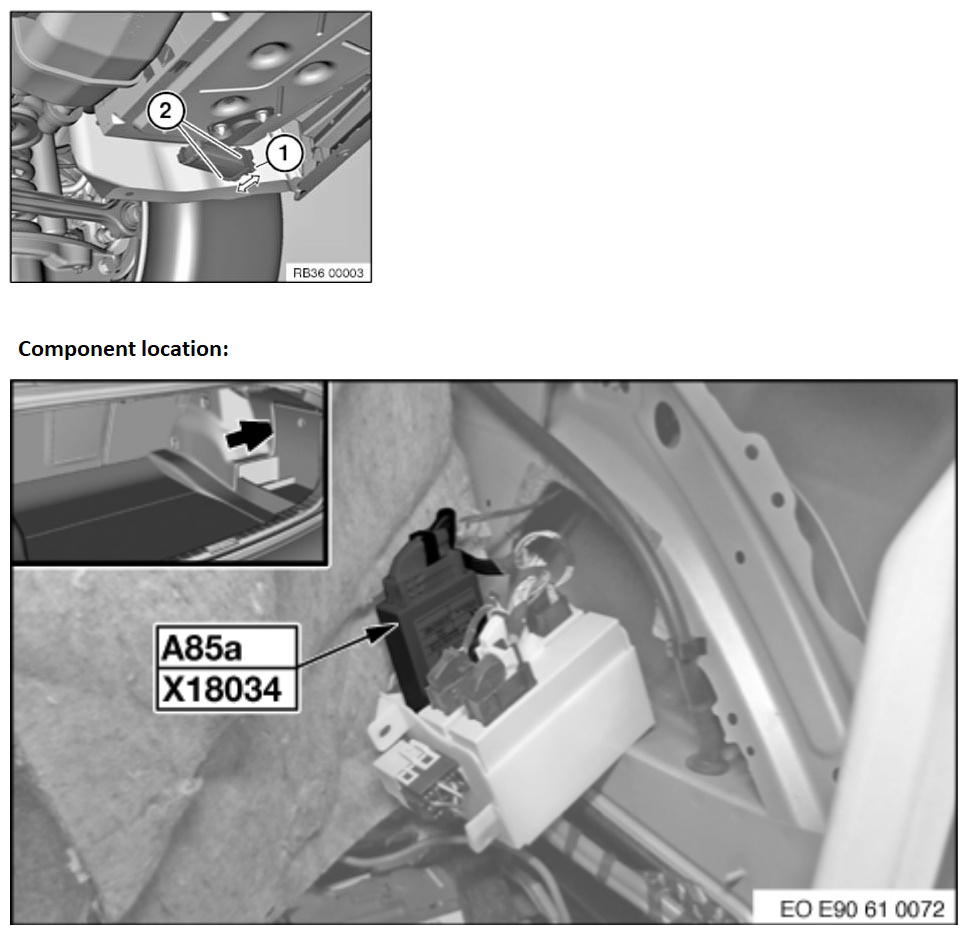

Disconnect plug connection (1).
Press retaining tabs (2) apart as indicated by arrow.
Pull out TPC control unit.
Replacement:
- Carry out PROGRAMMING/ENCODING .
